Hermetic Thermocouple Connector with Chromel-Alumel Polarity Pins
Hermetic Thermocouple Connector with Chromel-Alumel Polarity Pins
SKU:HER-2d6435
Precise hermetic thermocouple connector with Chromel-Alumel pins for accurate temperature measurement in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hermetic Thermocouple Connector with Chromel-Alumel Polarity Pins
$29.99
Quantity: 1
Claim Your Seller Account
Hermetic Thermocouple Connector with Chromel-Alumel Polarity Pins
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

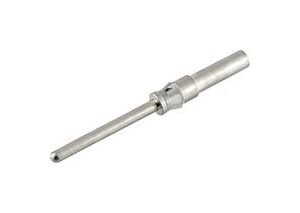

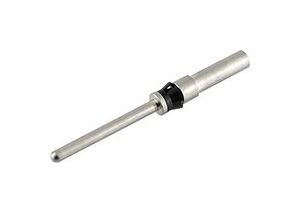

The MS Long Type Thermocouple Socket/Plug Pins Polarity Hermetic Connector offers precise temperature measurement with K-type and E-type Chromel-Alumel pins. Designed for reliability in challenging environments, these connectors support a temperature range from -200 to +1000 ºC, meeting stringent requirements for accuracy and durability. With JCC branding and compatibility with #16 AWG wires, this connector ensures seamless integration for various industrial applications.
Product Specifications
Reasons Why Our Vacuum Connectors Are Chosen
The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.

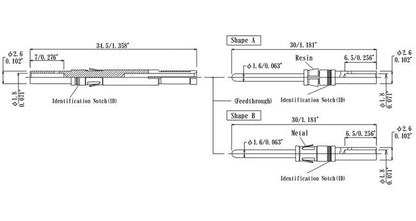

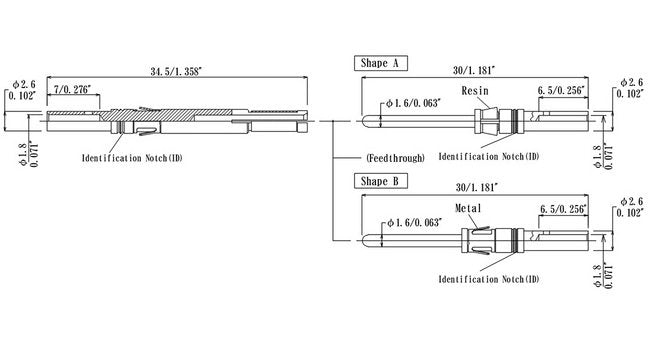

Specifications Acceptable Plug Diameter
1.6 mm | 0.063 in
Specifications Applicable Wire
#16 AWG | 1.25 mm²
Specifications Id Notch For E Code Shape A
One
Specifications Id Notch For E Code Shape B
One
Specifications Id Notch For K Code Shape A
One
Specifications Id Notch For K Code Shape B
One
Specifications Materials For E Code Shape A
Chromel
Specifications Materials For E Code Shape B
Chromel
Specifications Materials For K Code Shape A
Chromel
Specifications Materials For K Code Shape B
Chromel
Specifications Measuring Temperature Range For E Code
-200 to +700 ºC
Specifications Measuring Temperature Range For E Code Shape A
0 to +70 ºC
Specifications Measuring Temperature Range For E Code Shape B
-55 to +150 ºC
Specifications Measuring Temperature Range For K Code
-200 to +1000 ºC
Specifications Measuring Temperature Range For K Code Shape A
0 to +70 ºC
Specifications Measuring Temperature Range For K Code Shape B
-55 to +150 ºC
Specifications Negative Pole For E Code
Constantan
Specifications Negative Pole For K Code
Alumel
Specifications Positive Pole For E Code
Chromel
Specifications Positive Pole For K Code
Chromel
Specifications Remarks For E Code
Large Thermoelectric Power
Specifications Remarks For K Code
Most Common
Supplementary Information About Thermocouple Socket And Plug Pin
Compensating Lead WiresThe wiring from a thermocouple to measuring devices is done using what is known as compensating lead wires. These wires correct for errors caused by the temperature difference at the connection point between the thermocouple and the measuring device. Therefore, it is necessary to use compensating lead wires of the same type as the thermocouple. Using compensating wires or electrical wires of different materials can lead to temperature errors.Lifespan of ThermocouplesThe lifespan of a thermocouple greatly varies depending on the temperature and environment in which it is used. When used below the normal operating temperature in an oxidizing atmosphere, its lifespan is about 10,000 hours. However, its lifespan significantly decreases when used at its upper temperature limit.
