Hermetic Thermocouple Polarity Connector (MS Short Type)
Hermetic Thermocouple Polarity Connector (MS Short Type)
SKU:HER-88629e
Precision and durability meet in our Hermetic Thermocouple Polarity Connector, perfect for accurate temperature measurements in diverse conditions.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hermetic Thermocouple Polarity Connector (MS Short Type)
$45.99
Quantity: 1
Claim Your Seller Account
Hermetic Thermocouple Polarity Connector (MS Short Type)
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

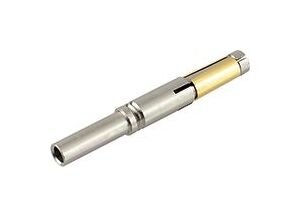

The Hermetic Thermocouple Polarity Connector, designed by JCC, offers exceptional accuracy and durability for temperature measurements in a wide range of environments. Available in K-type or E-type materials such as Chromel and Alumel, this connector ensures reliable performance from -55 to +150 ºC. With specific positive and negative poles and identifying notches for easy installation, this connector is ideal for applications requiring precise temperature control. Additionally, it complies with industry standards and is compatible with compensating lead wires to minimize temperature errors, making it a top choice for institutional and government buyers seeking high-quality thermocouple connectors.
Product Specifications
Reasons Why Our Vacuum Connectors Are Chosen
The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.

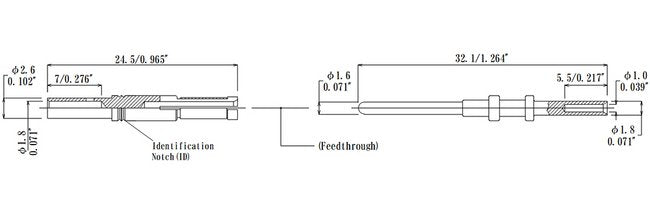

Specifications Acceptable Plug Diameter
1.6 mm | 0.063 in
Specifications Applicable Wire Plug Pins
#22 AWG | 0.5 mm²
Specifications Applicable Wire Socket Pins
#16 AWG | 1.25 mm²
Specifications Id Notch For E Code
One
Specifications Id Notch For K Code
One
Specifications Materials For E Code
Chromel
Specifications Materials For K Code
Chromel
Specifications Measuring Temperature Range For E Code
-200 to +700 ºC
Specifications Measuring Temperature Range For K Code
-200 to +1000 ºC
Specifications Negative Pole For E Code
Constantan
Specifications Negative Pole For K Code
Alumel
Specifications Operating Temperature
-55 to +150 ºC
Specifications Positive Pole For E Code
Chromel
Specifications Positive Pole For K Code
Chromel
Specifications Remarks For E Code
Large Thermoelectric Power
Specifications Remarks For K Code
Most Common
Supplementary Information About Thermocouple Socket And Plug Pin
Compensating Lead WiresThe wiring from a thermocouple to measuring devices is done using what is known as compensating lead wires. These wires correct for errors caused by the temperature difference at the connection point between the thermocouple and the measuring device. Therefore, it is necessary to use compensating lead wires of the same type as the thermocouple. Using compensating wires or electrical wires of different materials can lead to temperature errors.Lifespan of ThermocouplesThe lifespan of a thermocouple greatly varies depending on the temperature and environment in which it is used. When used below the normal operating temperature in an oxidizing atmosphere, its lifespan is about 10,000 hours. However, its lifespan significantly decreases when used at its upper temperature limit.
