Hermetically Sealed Low Level Audio Interstage Transformer with Mu-Metal Construction
Hermetically Sealed Low Level Audio Interstage Transformer with Mu-Metal Construction
SKU:AUD-68ea2c
Enhance audio performance with Triad's HS-29 Hermetically Sealed Interstage Transformer - Ideal for vintage and modern audio designs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hermetically Sealed Low Level Audio Interstage Transformer with Mu-Metal Construction
$129.99
Quantity: 1
Claim Your Seller Account
Hermetically Sealed Low Level Audio Interstage Transformer with Mu-Metal Construction
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

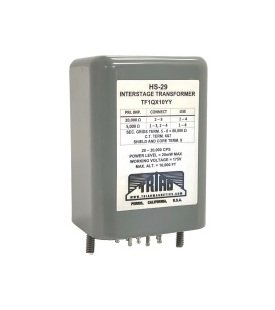

The Hermetically Sealed Low Level Audio Interstage Transformer by Triad, HS-29, is engineered for durability and precision in both vintage and modern designs. Encased in Mu-Metal for magnetic immunity with up to 95 dB Hum reduction, it offers a step-up turns ratio for impedance matching and power handling capability to deliver distortion-free full power within ± 3dB. Ideal for signal gain/attenuation, impedance matching, and more, it features a low temperature rise, high heat conductivity, and GP-4 case for reliable performance.
Product Specifications
Additional Information Additional Information
Avoid redesign - Use Triad HS and HSM transformers in military prototypesTriad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.
Electrical Specifications At 25 Degree Celsius C Temperature Max
22 dBu
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:2
Electrical Specifications At 25 Degree Celsius C Temperature Pri
5000 Ohm | 20000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
20000 Ohm | 80000 Ohm
Note Note
Low frequency loss will result from unbalanced DC in windings other than where specified.
Specifications Applications
Bridging-Line to 1 or Grids.

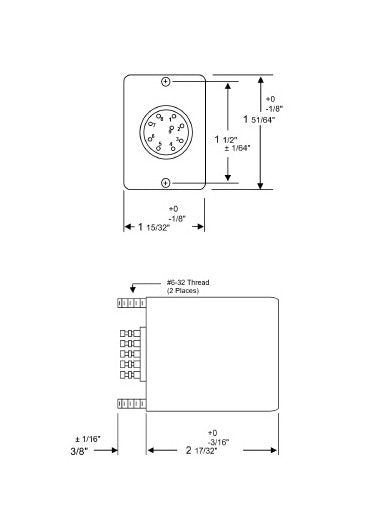

Specifications Case
GP-4
Specifications Frequency Response Range
20 to 20000 Hz
Specifications Note For Secondary Impedance
Center Tap
Specifications Power Level
20 mW
Specifications Shielding
P-5 - Three nickel alloy shields interleaved with two heavy copper shading rings - 95 db. reduction in pickup.
