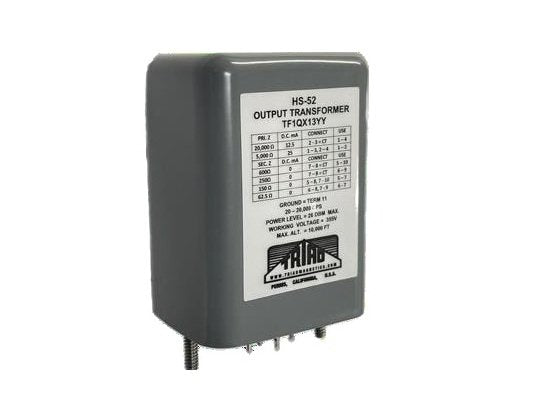

Hermetically Sealed Low Level Audio Transformer
Hermetically Sealed Low Level Audio Transformer
SKU:AUD-578597
Experience superior audio performance with our Hermetically Sealed Low Level Audio Transformer, designed to meet MIL-T-27 specifications for durability and reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hermetically Sealed Low Level Audio Transformer
$129.99
Quantity: 1
Claim Your Seller Account
Hermetically Sealed Low Level Audio Transformer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hermetically Sealed Low Level Audio Transformer is meticulously crafted to deliver unparalleled performance in audio equipment. Triad transformers feature a wide frequency range and exceptional magnetic shielding for pristine audio quality. With up to 95 dB shielding capability, these transformers are constructed to MIL-T-27 specifications, ensuring durability and reliability. Perfect for bridging applications, the transformer boasts balanced center tap secondary impedance options and a frequency response range of 20 to 20000 Hz. Designed for military prototypes, this transformer meets stringent standards for performance and longevity.
Product Specifications
Additional Information Additional Information
Avoid redesign - Use Triad HS and HSM transformers in military prototypesTriad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.
Electrical Specifications At 25 Degree Celsius C Temperature Max
10 dBu
Electrical Specifications At 25 Degree Celsius C Temperature Pri
5000 Ohm | 20000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
62.5 Ohm | 150 Ohm | 250 Ohm | 600 Ohm
Note Note
Low frequency loss will result from unbalanced DC in windings other than where specified.
Specifications Applications
Bridging, Single or P. P. Plates, to Universal Line.
Specifications Case
GP-4
Specifications Frequency Response Range
20 to 20000 Hz
Specifications Note For Secondary Impedance
Balanced Center Tap. (600 and 250 Ohm)
Specifications Shielding
P-5 - Three nickel alloy shields interleaved with two heavy copper shading rings - 95 db. reduction in pickup.
