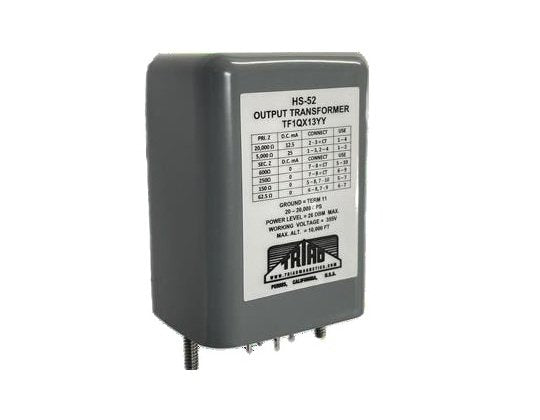

Hermetically Sealed Low Level Audio Transformer
Hermetically Sealed Low Level Audio Transformer
SKU:AUD-fa69e2
Achieve audio precision with the durable and precise Hermetically Sealed Low Level Audio Transformer from Triad, featuring Mu-Metal casing for superior hum reduction and impedance matching capabilities.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hermetically Sealed Low Level Audio Transformer
$129.99
Quantity: 1
Claim Your Seller Account
Hermetically Sealed Low Level Audio Transformer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hermetically Sealed Low Level Audio Output, Mixing, Matching, and Bridging Transformer by Triad offers unmatched durability and precision for today's intricate designs. Constructed with Mu-Metal casing for magnetic field immunity and superior hum reduction of up to 95 dB. This transformer features a generous step-down turns ratio to facilitate seamless impedance matching, wide power handling capacity for distortion-free power delivery, and versatile applications including signal pre-amplification, inter-stage isolation, and impedance matching. Its dependable hermetically sealed build ensures low temperature rise and optimal heat conductivity, making it a reliable choice for demanding audio setups.
Product Specifications
Additional Information Additional Information
Avoid redesign - Use Triad HS and HSM transformers in military prototypesTriad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.
Electrical Specifications At 25 Degree Celsius C Temperature Dcr
4.50 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
26 dBu
Electrical Specifications At 25 Degree Celsius C Temperature Ove
5.6:1
Electrical Specifications At 25 Degree Celsius C Temperature Pri
5000 Ohm | 20000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
62.5 Ohm | 150 Ohm | 250 Ohm | 600 Ohm
Note Note
Low frequency loss will result from unbalanced DC in windings other than where specified.
Specifications Applications
P. P. Plates to Universal Line.

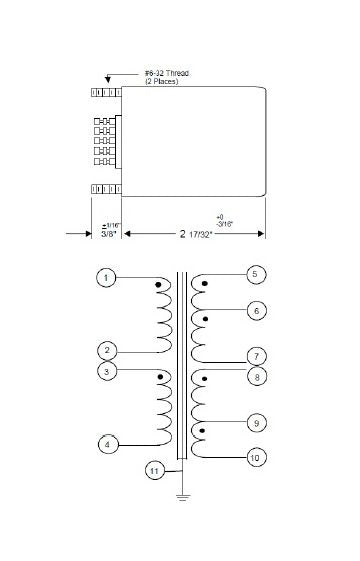

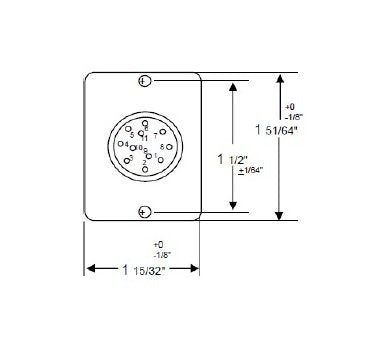

Specifications Case
GP-4
Specifications Frequency Response Range
20 to 20000 Hz
Specifications Note For Secondary Impedance
Balanced Center Tap. (600 and 250 Ohm)
Specifications Power Level
26 mW
Specifications Shielding
P-1 - One nickel alloy high permeability shield - 45 db. reduction in pickup.
