Enhance your audio setup with the Triad HS-50 Hermetically Sealed Audio Transformer for superior durability and precision.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hermetically Sealed Low Level Audio Transformer
$49.99
Quantity: 1
Claim Your Seller Account
Hermetically Sealed Low Level Audio Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

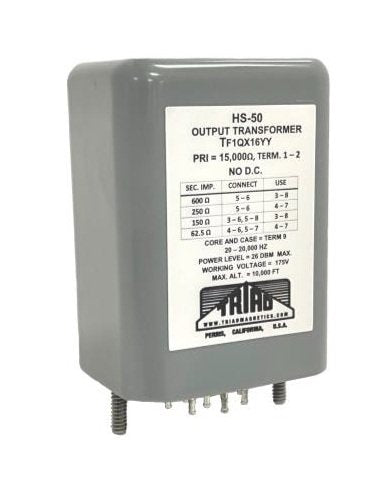

Upgrade your audio equipment with the durable and precise Triad HS-50 Output Audio Transformer. Featuring a Mu-Metal case for magnetic field immunity, 95 dB Hum reduction, and wide power handling capacity. Perfect for signal pre-amplification, impedance matching, and more. Hermetically sealed for low temperature rise and high heat conductivity.
Product Specifications
Additional Information Additional Information
Avoid redesign - Use Triad HS and HSM transformers in military prototypesTriad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.
Electrical Specifications At 25 Degree Celsius C Temperature Max
26 dBu
Electrical Specifications At 25 Degree Celsius C Temperature Ove
5:1
Electrical Specifications At 25 Degree Celsius C Temperature Pri
15000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
62.5 Ohm | 150 Ohm | 250 Ohm | 600 Ohm
Note Note
Low frequency loss will result from unbalanced DC in windings other than where specified.
Specifications Applications
Plate to Universal Line.

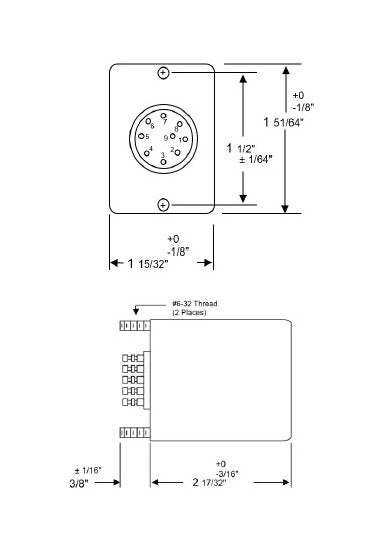

Specifications Case
GP-4
Specifications Frequency Response Range
20 to 20000 Hz

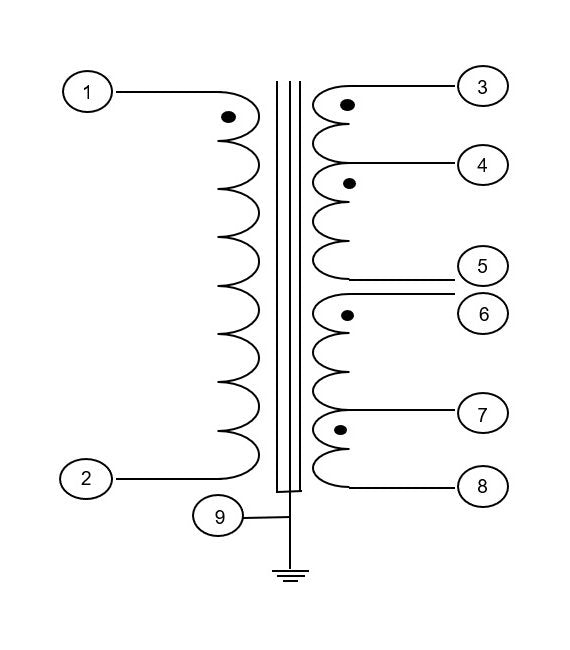

Specifications Note For Secondary Impedance
Balanced Center Tap. (600 and 250 Ohm)
Specifications Power Level
26 mW
Specifications Shielding
P-3 - Two nickel alloy shields interleaved with one heavy copper shading ring 70 db. reduction in pickup.
