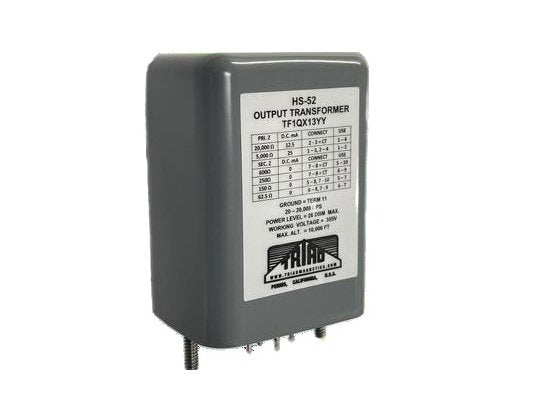

Triad sets the standard with the Hermetically Sealed Low Level Audio Transformer. Wide frequency range, exceptional magnetic shielding, and MIL-T-27 compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hermetically Sealed Low Level Audio Transformer
$129.99
Quantity: 1
Claim Your Seller Account
Hermetically Sealed Low Level Audio Transformer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hermetically Sealed Low Level Audio Transformer from Triad sets the standard for audio equipment manufacturers. With a wide frequency range of 20 to 20000 Hz and exceptional magnetic shielding up to 95 dB, this transformer ensures premium audio quality. Built to MIL-T-27 specifications, featuring Trialloy cases and heavy copper shading rings, it offers durability and effective shielding. Primary impedance of 15000 Ohm, secondary impedance of 110000 Ohm, and a maximum input level of 15 dBu make this transformer ideal for single plate to single grid applications. Triad HS and HSM series are designed for military prototypes, meeting MIL-T-27 standards without the need for redesign.
Product Specifications
Additional Information Additional Information
Avoid redesign - Use Triad HS and HSM transformers in military prototypesTriad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.
Electrical Specifications At 25 Degree Celsius C Temperature Max
15 dBu
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:2.7
Electrical Specifications At 25 Degree Celsius C Temperature Pri
15000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
110000 Ohm
Note Note
Low frequency loss will result from unbalanced DC in windings other than where specified.
Specifications Applications
Single Plate to Single Grid.
Specifications Case
GP-4
Specifications Frequency Response Range
20 to 20000 Hz
Specifications Shielding
P-3 - Two nickel alloy shields interleaved with one heavy copper shading ring 70 db. reduction in pickup.
