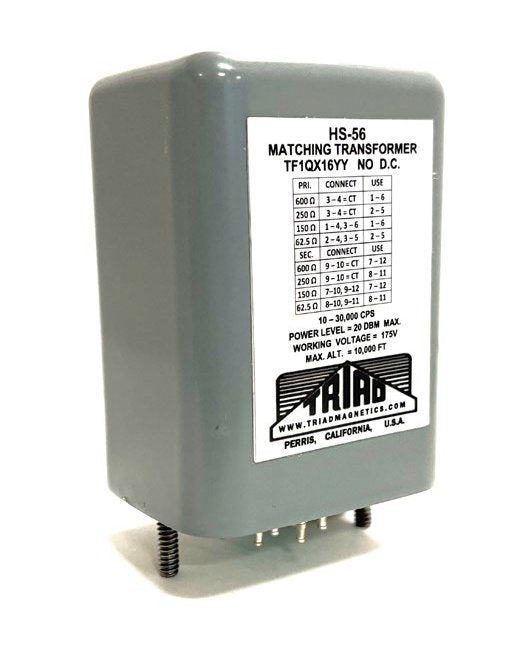

The Hermetically Sealed Low Level Audio Transformer by Triad, model HS-56, is a premium solution designed to meet the stringent demands of modern designs. Encased in Mu-Metal for magnetic immunity, it offers up to 95 dB hum reduction and ample turns ratios for precise impedance matching. With a wide power handling capacity ensuring distortion-free performance within ±3dB, this transformer excels in impedance matching, pre-amplification, inter-stage isolation, and signal level adjustments. Its dependable construction boasts low temperature rise and high heat conductivity, making it ideal for critical audio applications.
Product Specifications
Additional Information Additional Information
Avoid redesign - Use Triad HS and HSM transformers in military prototypesTriad HS and HSM series transformers are designed to meet MIL-T-27 requirements. Most of these transformers use standard MIL-T-27 case sizes. Exceptions are GP cases or any cases showing a Bw dimension, which may be classified as MIL-T-27 'YY' cases. Equipment using these transformers need not be redesigned to submit for military approval. The basically good design factors which are necessary to meet MIL-T-27 standards for performance ensure longest life in any class of service.These transformers are permanently marked with electrical and test data as specified in MIL-T-27. All are "Climatite" treated, use sturdy TRIAD terminals and are beautifully finished in gray enamel.
Electrical Specifications At 25 Degree Celsius C Temperature Dcr
15.10 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
20 dBM
Electrical Specifications At 25 Degree Celsius C Temperature Pri
62.5 Ohm | 150 Ohm | 250 Ohm | 600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
62.5 Ohm | 150 Ohm | 250 Ohm | 600 Ohm
Note Note
Graph data was taken on a random sample using an Audio Precision Model APX555 Audio Analyzer.
Rohs Compliance Rohs Compliance
As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative.
Specifications Applications
Universal Line to Universal Line.

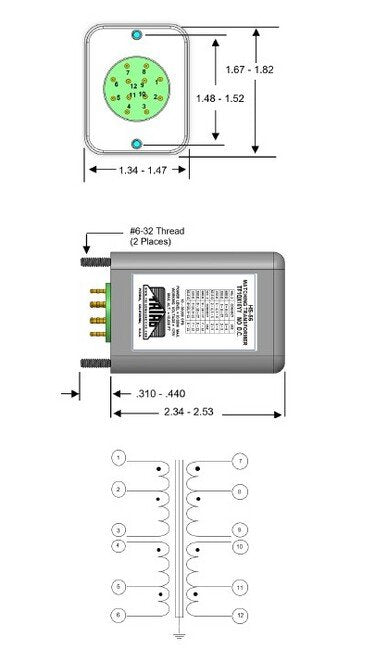

Specifications Case
GP-4
Specifications Frequency Response Range
10 to 30000 Hz
Specifications Note For Secondary Impedance
Balanced Center Tap. (600 and 250 Ohm)
Specifications Shielding
P-3 - Two nickel alloy shields interleaved with one heavy copper shading ring 70 db. reduction in pickup.
