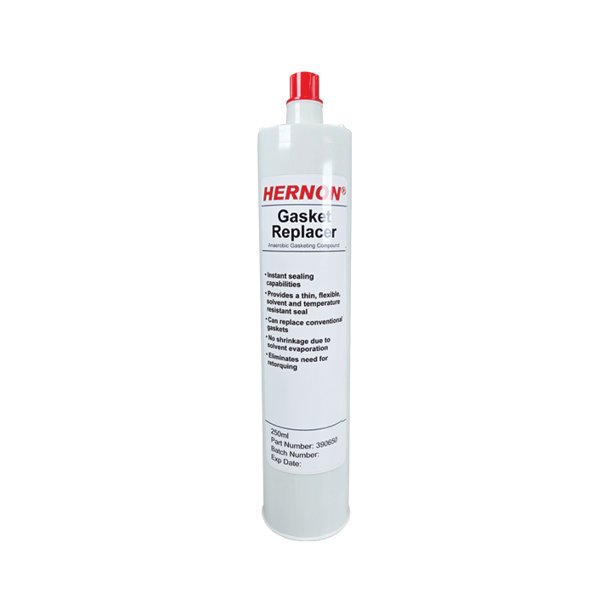

Hernon 910 Gasket Compound, 250mL Volume
Hernon 910 Gasket Compound, 250mL Volume
SKU:GAS-b53505
Instantly seal metal flanges with Hernon 910 Gasket Compound - flexible, solvent-resistant, ISO-9001 compliant, no retorquing needed!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hernon 910 Gasket Compound, 250mL Volume
$29.99
Quantity: 1
Claim Your Seller Account
Hernon 910 Gasket Compound, 250mL Volume
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hernon 910 Gasket Replacing Compound is a cutting-edge anaerobic sealant designed for instant sealing between metal flanges, offering exceptional flexibility and resistance to solvents and extreme temperatures. With a unique single-component formula and compliant with International Organization for Standardization (ISO-9001) standards, this compound provides a reliable, shrinkage-free seal that eliminates the need for retorquing. Ideal for vacuum pump flanges, fuel tanks, pumps, gearbox covers, and more, it ensures a secure bond and excellent chemical resistance. Trusted by leading institutions and compatible with dispensing equipment from Hernon, this high-performance compound is a top choice for reliable sealing in demanding applications.
Product Specifications
Benefits Benefits
Instant sealingProvides reliable sealNo shrinkage due to solvent evaporationExcellent chemical resistanceEliminates need for retorquing
Directions For Use Directions For Use
For best performance bond surfaces should be clean and free from grease.The product is designed for close fitting flanged parts with gaps up to 0.25 mm.Apply manually as a continuous bead or by screenprinting to one surface of the flangesLow pressures (<0.05 MPa) may be used when testing to confirm a complete seal immediately after assembly and before curing.Flanges should be tightened as soon as possible after assembly to avoid shimming.
Dispensing Equipment Dispensing Equipment
Hernon® offers a complete line of semi and fully automated dispensing equipment.
General Information General Information
This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or other strong oxidizing materials.Where aqueous washing systems are used to clean the surfaces before bonding, it is important to check for compatibility of the washing solution with the adhesive. In some cases these aqueous washes can affect the cue and performance of the adhesive.This product is not normally recommended for use on plastics (particularly thermoplastic materials where stress cracking of the plastic could result). It is recommended to confirm compatibility of the product with such substrates.
Note Note
These suggestions and data are based on information we believe to be reliable and accurate, but no guarantee of their accuracy is made. Hernon manufacturing®, inc. shall not be liable for any damage, loss or injury, direct or consequential arising out of the use or the inability to use the product. in every case, we urge and recommend that purchasers, before using any product in full scale production, make their own tests to determine whether the product is of satisfactory quality and suitability for their operations, and the user assumes all risk and liability whatsoever, in connection therewith. hernon's quality management system for the design and manufacture of high-performance adhesives and sealants is registered to the ISO 9001 quality standard.
Storage Storage
Hernon® Gasket Replacer 910 should be stored in a cool, dry location in unopened containers at a temperature between 46ºF to 82ºF (8ºC to 28ºC) unless otherwise labeled. Optimal storage is at the lower half of this temperature range. To prevent contamination of unused material, do not return any material to its original container.
Technical Specs Applications
Gasketing
Technical Specs Brands
Hernon Manufacturing, Inc
Technical Specs Industry Standards
International Organization for Standardization (ISO-9001)
Technical Specs Substrates
Metal
Technical Specs Volume
250 mL
Applications Applications
Vacuum pump flangesFuel tanks on chain sawsFuel and water pumpsGearbox coversAutomotive and truck axle covers
Properties Cured Coefficient Of Thermal Conductivity
0.1 W/m·K
Properties Cured Coefficient Of Thermal Expansion K 1
80 x 10-6
Properties Cured Temperature Range
-65 to 300 ºF
Properties Cured Test Method For Coefficient Of Thermal
American Society for Testing and Materials (ASTM) D696
Properties Uncured Appearance
Purple Liquid
Properties Uncured Resin
Methacrylate Ester
Properties Uncured Specific Gravity
1.10
Properties Uncured Viscosity At 25 Degree Celsius C Temp
150,000 to 375,000 cP
