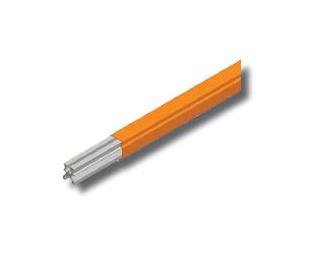

Hevi-Bar II Conductor Bar Cut Lengths
Hevi-Bar II Conductor Bar Cut Lengths
SKU:CRA-e0eb3d
Reliable Hevi-Bar II Conductor Bar Cut Lengths for efficient power distribution in crane electrification. Amperage Rating: 1000A.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths
$349.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar Cut Lengths are designed for superior crane control and electrification needs, featuring an Amperage Rating of 1000A, PVC material for durability, and a maximum system voltage of 4160V AC or 600V DC. With excellent resistance and support spacing of 10ft, these conductor bar lengths provide reliable power distribution. Additionally, the included accessories like Pick-up Guides and Transfer Caps enhance system flexibility. Compliant with industry standards and suitable for both indoor and phase applications.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
2.8 lb/ft
