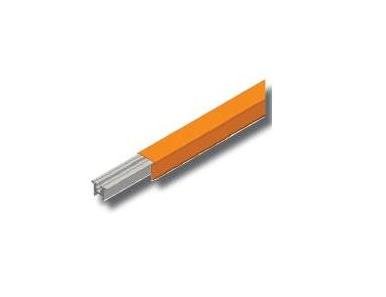

Hevi-Bar II Conductor Bar Cut Lengths
Hevi-Bar II Conductor Bar Cut Lengths
SKU:CRA-de3a82
Power your crane control systems effectively with Hevi-Bar II Conductor Bar Cut Lengths. Corrosion-resistant, high voltage capacity, and safe for indoor/outdoor use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths
$45.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your crane control system with these Standard Conductor Bar Cut Lengths designed for the Hevi-Bar II Conductor Bar. With an Amperage Rating of 500A, Polycarbonate Material, and a Maximum System Voltage of 600V, these lengths ensure reliable power distribution. Featuring corrosion protection options including Stainless Steel and Zinc Plating, along with various available accessories for customization, these conductor bar lengths are suitable for indoor and outdoor use. With a flame test rating of Self Extinguishing and compliance with dielectric strength standards, these cut lengths guarantee safety and durability for your electrification needs.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
5 to 29 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
0.81 lb/ft
