Hevi-Bar II Conductor Bar Cut Lengths
Hevi-Bar II Conductor Bar Cut Lengths
SKU:CRA-caa87e
Power up your crane control with durable conductor bars for efficient distribution. Suitable for indoor & outdoor use.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths
$399.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your crane control system with the Hevi-Bar II Conductor Bar Cut Lengths. These standard lengths feature a durable Polycarbonate construction with an impressive Amperage Rating of 1500 A. Suitable for both indoor and outdoor use, they offer corrosion protection options in Stainless Steel or Zinc Plated. With a wide range of accessories available, including Pick-up Guides and Transfer Caps, these conductor bars ensure efficient power distribution. Meet your operational needs with Hevi-Bar II Conductor Bar Cut Lengths.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
1500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)

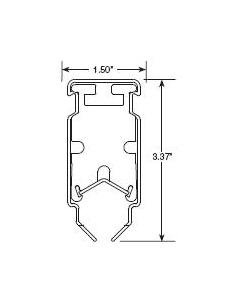

Specifications Cross Sectional Area
2.29 in²
Specifications Length
5 to 29 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
15 ft
Specifications Phase Corrected Impedance Z At 20 C
2.28 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
0.64 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
3.6 lb/ft
