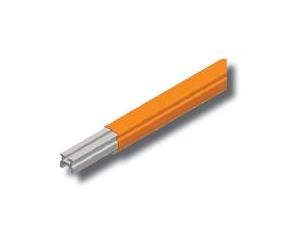

Hevi-Bar II Conductor Bar Cut Lengths
Hevi-Bar II Conductor Bar Cut Lengths
SKU:CRA-ecc63d
Efficiently distribute power with Hevi-Bar II Conductor Bar Cut Lengths, UL-listed for safety and durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths
$129.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar Cut Lengths are designed for efficient power distribution in crane control systems, featuring a robust PVC material with an amperage rating of 700 A. With a maximum temperature of 160°F and corrosion protection options including stainless steel and zinc plating, these conductor bars offer durability and longevity. The various available accessories such as pick-up guides, transfer caps, and curves make installation flexible and hassle-free. Meeting UL listing standards for maximum system voltage and with a flame test rating of self-extinguishing, these conductor bar cut lengths ensure safety and reliability in industrial applications.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
1.31 lb/ft
