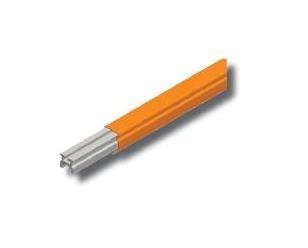

Hevi-Bar II Conductor Bar Cut Lengths
Hevi-Bar II Conductor Bar Cut Lengths
SKU:CRA-15d8ca
High-performance Hevi-Bar II Conductor Bar Cut Lengths for efficient crane control. With 700A rating, polycarbonate material, and corrosion protection options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths
$49.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar Cut Lengths are designed for robust crane control and electrification systems. With an impressive amperage rating of 700 A, polycarbonate material, and a maximum temperature of 250°F, these conductor bar lengths are suitable for both indoor and outdoor applications. Featuring a cross-sectional area of 0.70 in² and a phase & ground cover, these conductor bar lengths ensure efficient power distribution. The included accessories like pick-up guides and transfer caps enhance system flexibility, while corrosion protection options in stainless steel or zinc plated ensure durability. Compliant with industry standards for support spacing, conductor spacing, and bending radius, this product offers reliable performance in demanding environments.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
5 to 29 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
1.31 lb/ft
