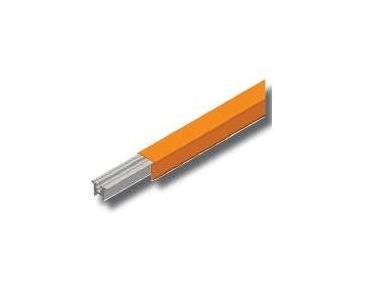

Hevi-Bar II Conductor Bar Cut Lengths
Hevi-Bar II Conductor Bar Cut Lengths
SKU:CRA-8e767a
Enhance your crane system with Hevi-Bar II Conductor Bar Cut Lengths. Durable PVC, 500A amperage, -40 to 104°F ambient range. UL listed.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths
$45.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your crane control system with our Hevi-Bar II Conductor Bar Cut Lengths. Built with durable PVC material, these bars have an amperage rating of 500 A and can operate at temperatures up to 160°F. With a cover designed for indoor use, corrosion protection options like Stainless Steel or Zinc Plating, and various available accessories, these conductor bars offer reliability and safety for your electrification needs. Compliant with UL listings, these bars ensure efficient power distribution and easy installation in a range of industrial settings.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
0.81 lb/ft
