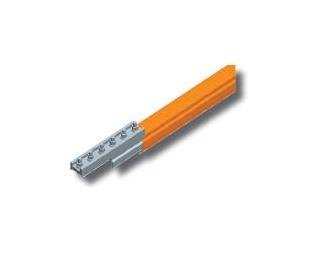

Hevi-Bar II Conductor Bar Cut Lengths with Splice Installed
Hevi-Bar II Conductor Bar Cut Lengths with Splice Installed
SKU:CRA-ad48b0
Reliable and durable Hevi-Bar II Conductor Bar Cut Lengths with Splice Installed for corrosive environments. Amperage Rating: 700A
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Cut Lengths with Splice Installed
$179.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Cut Lengths with Splice Installed
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, ensuring reliable power transmission with an amperage rating of 700 A. Constructed with PVC material, these conductor bars feature a maximum temperature of 160°F and a maximum system voltage of 4160 V AC or 600 V DC per UL listing. With a self-extinguishing ground cover suitable for indoor use, these conductor bars offer exceptional durability and performance. Designed for ease of installation and maintenance, these cut lengths come with various accessories for seamless integration into crane control and electrification systems.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Ground / Indoors (Green)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
1.31 lb/ft
