Hevi-Bar II Conductor Bar Expansion Section
Hevi-Bar II Conductor Bar Expansion Section
SKU:CRA-fe5646
Expand your crane system seamlessly with the Hevi-Bar II Conductor Bar Expansion Section - ideal for joints over 390 ft, featuring 700A rating, accessories for various setups, and durable PVC construction.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Expansion Section
$499.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Expansion Section
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

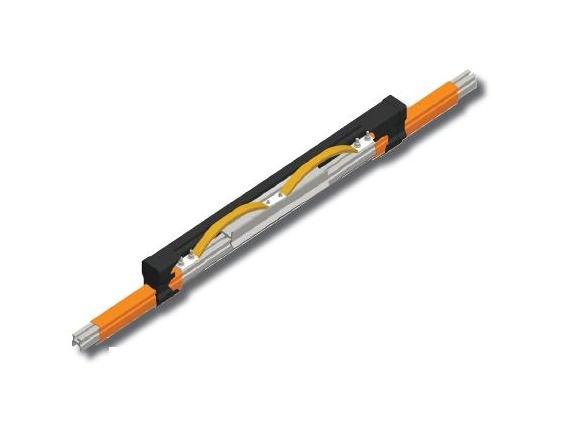

The Hevi-Bar II Conductor Bar Expansion Section is a crucial component required for structural expansion joints and systems exceeding 390 ft. This PVC-made section features a 700A amperage rating, thermostatically controlled heater wire system for ice and snow environments (500A only), transfer caps for switches, pick-up guides for discontinuous systems, and the flexibility for vertical and horizontal curves. With a maximum temperature of 160°F and a durable cover type suitable for indoor use, this 15.0 ft long, 50.0 lb section ensures reliable power transmission and seamless electrical connectivity for your crane control systems.
Product Specifications
Specifications Amperage Rating
700 A
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Length
15.0 ft
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Weight
50.0 lb
