Hevi-Bar II Conductor Bar Expansion Section
Hevi-Bar II Conductor Bar Expansion Section
SKU:CRA-8a0439
Enhance your Hevi-Bar II system with this Expansion Section for seamless structural integration. Durable PVC construction with 500A rating.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Expansion Section
$499.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Expansion Section
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

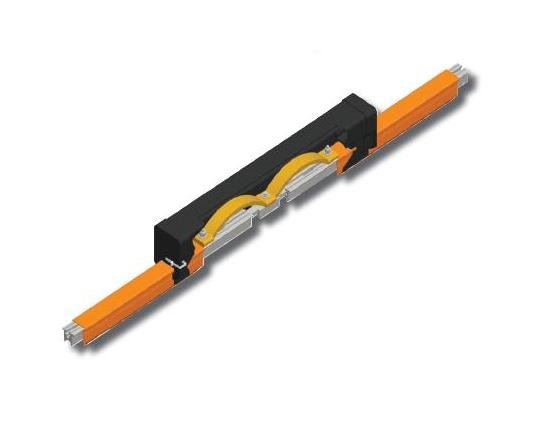

The Hevi-Bar II Conductor Bar Expansion Section is a vital component for all systems exceeding 390 ft. It features a durable PVC construction, with an Amperage Rating of 500 A, making it suitable for various heavy-duty applications. This expansion section is designed to accommodate structural expansion joints seamlessly, offering versatility and reliability. With a maximum temperature rating of 160 °F, it ensures safe operation even in challenging environments. The inclusion of accessories like Thermostatically controlled heater wire system and Transfer Caps enhances its functionality, catering to diverse requirements.
Product Specifications
Specifications Amperage Rating
500 A
Specifications Cover Type
Ground / Indoors (Green)
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Weight
30.0 lb
