Hevi-Bar II Conductor Bar Hanger

Name: Hevi-Bar II Conductor Bar Hanger
Brand: Clutch Engineering
SKU: CRA-e9e5ee
Price: 29.99 USD
Availability: OutOfStock

SKU:CRA-e9e5ee

Securely hold conductor bars with the durable Hevi-Bar II Hanger. Designed for heavy-duty applications with a 500A rating.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

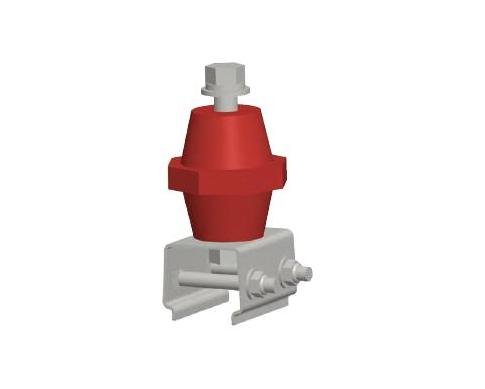

The Hevi-Bar II Conductor Bar Hanger is designed to securely hold conductor bars on brackets up to 3/8" thick, ensuring a safe and stable electrical connection. Constructed with plated material and featuring a stainless steel cross bolt with insulator cover, this hanger is durable and reliable. With an amperage rating of 500 A and a weight of 1.13 lb, this hanger is suitable for heavy-duty industrial applications. The cross bolts on the hanger can also serve as anchors, providing added versatility and functionality.

Product Specifications

Specifications Amperage Rating

500 A

Specifications Cover Type

Stainless Steel Cross Bolt with insulator

Specifications Material

Plated

Specifications Weight

1.13 lb

Hevi-Bar II Conductor Bar Hanger
