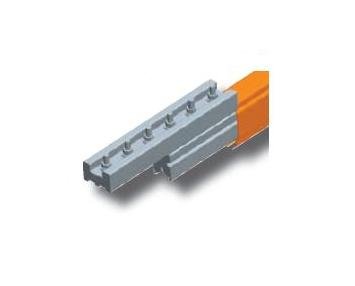

Hevi-Bar II Conductor Bar Splice Joints
Hevi-Bar II Conductor Bar Splice Joints
SKU:CRA-2baa66
High-amperage PVC splice joints for Hevi-Bar II Conductor Bar Systems. Suitable for outdoor and indoor use. Easy to install and durable.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Splice Joints
$129.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Splice Joints
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar Splice Joints are designed to efficiently connect heavy-duty conductor bars, ensuring seamless power transmission. With an impressive amperage rating of 1500 A, these PVC splice joints are built to deliver reliable performance even in demanding environments. The UV-stable black cover for outdoor use and bright orange cover for indoor applications offer versatility. Weighing only 4.0 lb, these splice joints are easy to handle and install, featuring 5/16 in bolts with a torque range of 10 - 11 ft·lb. Compliant with industry standards, these splice joints are a durable and dependable choice for crane control and electrification systems.
Product Specifications
Specifications Amperage Rating
1500 A
Specifications Bolts
5/16 in
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black) | Phase / Indoors (Orange)
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Torque
10 - 11 ft·lb
Specifications Weight
4.0 lb
