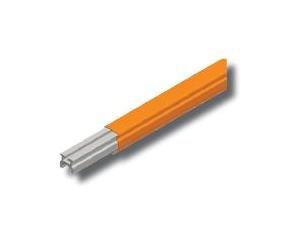

Hevi-Bar II Conductor Bar - Standard Conductor Bar
Hevi-Bar II Conductor Bar - Standard Conductor Bar
SKU:CRA-5c7368
Hevi-Bar II Standard Conductor Bar - High-performance PVC conductor bar for efficient power distribution in crane control systems.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar - Standard Conductor Bar
$349.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar - Standard Conductor Bar
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Standard Conductor Bar is a high-performance PVC conductor bar designed for crane control and electrification systems. With an impressive amperage rating of 700A, this conductor bar ensures efficient power distribution. It features a durable PVC construction with a maximum temperature of 160°F, suitable for indoor use, and a weight of 40.0 lb. The Hevi-Bar II Conductor Bar meets UL listing requirements with a maximum system voltage of 4160V AC or 600V DC, offering reliable and safe operation. Additionally, it includes various accessories like pick-up guides, transfer caps, and curves for versatile application possibilities.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
