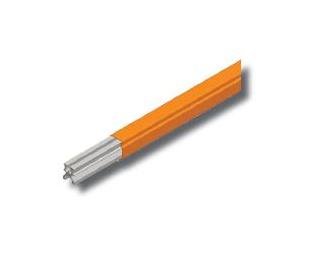

Hevi-Bar II Conductor Bar - Standard Conductor Bar
Hevi-Bar II Conductor Bar - Standard Conductor Bar
SKU:CRA-05d446
High-amperage and durable Conductor Bar for efficient power distribution in crane control and electrification systems.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar - Standard Conductor Bar
$799.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar - Standard Conductor Bar
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar offers a reliable solution for efficient power distribution in crane control and electrification systems. This Standard Conductor Bar features a robust Fiberglass Reinforced Polyester construction, capable of handling high amperage up to 1000 A with a maximum system voltage of 4160 V AC or 600 V DC. Designed for indoor use, the Conductor Bar boasts a Phase & Ground cover in striking orange color, meeting industry standards for corrosion protection and flame resistance. With a variety of available accessories including Pick-up Guides, Transfer Caps, and curves, this Conductor Bar ensures seamless installation and dependable performance.
Product Specifications
Cover Specifications Dielectric Strength
200 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 345 ºF
Cover Specifications Specific Density
1.24 g/cm³
Cover Specifications Volume Resistivity
>1011 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground / Indoors (Orange)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
30.0 ft
Specifications Material
Fiberglass Reinforced Polyester
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
400 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
85.0 lb
