Hevi-Bar II Conductor Bar Web Brackets

Name: Hevi-Bar II Conductor Bar Web Brackets
Brand: Clutch Engineering
SKU: CRA-f83c0a
Price: 89.99 USD
Availability: OutOfStock

SKU:CRA-f83c0a

Securely mount Hevi-Bar II Conductor Bar on vertical beams with precision. Hot dip galvanized, feature 4 pre-installed hangers. Various amperage ratings available.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

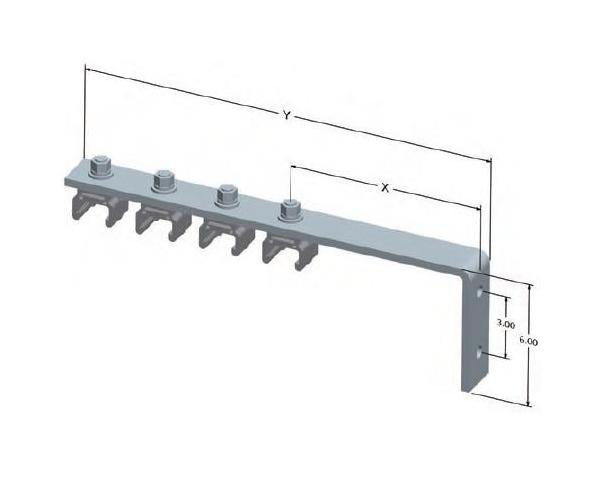

The Hevi-Bar II Conductor Bar Web Brackets are designed to securely mount to the vertical web of beams with precision. Featuring hanger holes spaced at 3" on-center, these brackets are optimized for 3/8" diameter hanger bolts. Crafted from hot dip galvanized material, each bracket comes equipped with four pre-installed hangers, each with a stainless steel cross-bolt and insulators. With an amperage rating options of 700A, 1000A, or 1500A, these brackets offer durable support for your conductor bar system. Measuring 2 1/2" wide by 3/8" thick and weighing 5.2 lbs, these brackets provide robust and reliable mounting solutions for your electrical infrastructure.

Product Specifications

Specifications Amperage Rating

700 A | 1000 A | 1500 A

Specifications Material

Hot Dip Galvanized

Specifications Type

Bracket with four pre-installed hangers - stainless steel cross-bolt with insulators

Specifications Weight

5.2 lb

Specifications X

9 in

Specifications Y

19 1/4 in
