Hevi-Bar II Conductor Bar Web Brackets

Name: Hevi-Bar II Conductor Bar Web Brackets
Brand: Clutch Engineering
SKU: CRA-8a2d9d
Price: 49.99 USD
Availability: OutOfStock

SKU:CRA-8a2d9d

Durable Hevi-Bar II Conductor Bar Web Brackets for secure vertical beam mounting. Plated steel, amperage rating up to 1500 A.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

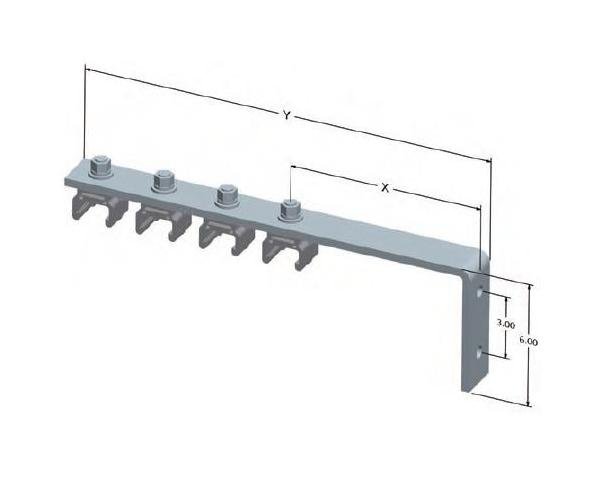

The Hevi-Bar II Conductor Bar Web Brackets are designed for superior functionality and durability in crane control and electrification systems. Each bracket features holes spaced 3" on-center with a 0.56" diameter, suitable for 3/8" hanger bolts. Constructed from plated steel, these brackets securely mount to the vertical web of the beam and come equipped with four pre-installed hangers featuring stainless steel cross-bolts with insulators. With an amperage rating of 700 A, 1000 A, or 1500 A, and weighing 5.2 lbs, these brackets measure 2 1/2" wide by 3/8" thick, providing robust support for your Hevi-Bar II Conductor Bar.

Product Specifications

Specifications Amperage Rating

700 A | 1000 A | 1500 A

Specifications Material

Plated Steel

Specifications Type

Bracket with four pre-installed hangers - stainless steel cross-bolt with insulators

Specifications Weight

5.2 lb

Specifications X

9 in

Specifications Y

19 1/4 in

Hevi-Bar II Conductor Bar Web Brackets
