Hevi-Bar II Conductor Bar Web Brackets with Stainless Steel Hangers
Hevi-Bar II Conductor Bar Web Brackets with Stainless Steel Hangers
SKU:CRA-648eb6
Enhance crane control systems with our robust Hevi-Bar II Conductor Bar Web Brackets. Compatible with stainless steel hangers and designed for efficient mounting on vertical beams.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar Web Brackets with Stainless Steel Hangers
$79.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar Web Brackets with Stainless Steel Hangers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

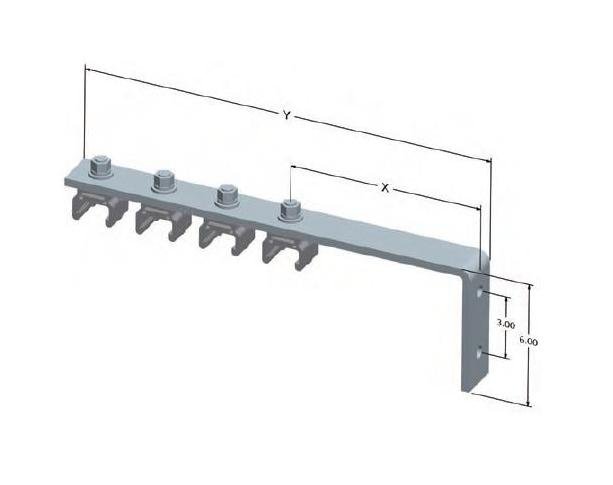

The Hevi-Bar II Conductor Bar Web Brackets are meticulously designed for optimal performance in crane control systems. Crafted from plated steel, these sturdy brackets feature pre-installed stainless steel hangers, each with a 3/8" diameter. With a 700 A to 1500 A amperage rating, they ensure reliable power distribution. Measuring 2 1/2" wide by 3/8" thick, these brackets effortlessly mount to the vertical web of beams. This product is a testament to durability and precision, meeting the highest standards of quality and functionality in industrial electrification applications.
Product Specifications
Specifications Amperage Rating
700 A | 1000 A | 1500 A
Specifications Material
Plated Steel
Specifications Type
Bracket with four pre-installed hangers - stainless steel cross-bolt
Specifications Weight
4.6 lb
Specifications X
6 in
Specifications Y
16 1/4 in
