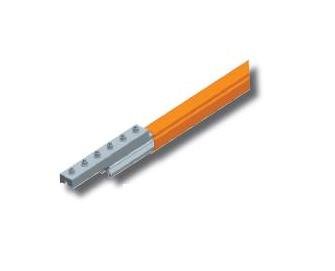

Hevi-Bar II Conductor Bar with Splice Installed
Hevi-Bar II Conductor Bar with Splice Installed
SKU:CRA-880ef3
Durable Hevi-Bar II Conductor Bar for corrosive environments, 1000A, PVC material, 160 ºF max temp, complies with safety standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar with Splice Installed
$899.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar with Splice Installed
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar with Splice Installed is expertly designed for highly corrosive environments, featuring a durable PVC material and a maximum temperature of 160 ºF. With an impressive amperage rating of 1000 A and a cross-sectional area of 1.05 in², this conductor bar offers reliable performance. It complies with industry standards for safety and functionality, providing optimal support spacing, spacing between conductors, and a minimum bending radius of 12 ft. Ideal for crane control and electrification applications, this conductor bar ensures efficient power distribution and system voltage up to 4160 V. Enhance your operations with the Hevi-Bar II Conductor Bar with Splice Installed.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
85.0 lb
