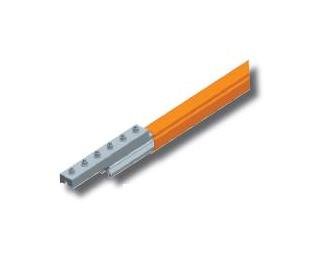

Hevi-Bar II Conductor Bar with Splice Installed
Hevi-Bar II Conductor Bar with Splice Installed
SKU:CRA-c38f5e
Durable and corrosion-resistant Hevi-Bar II Conductor Bar with Splice Installed for high-performance power distribution in demanding environments.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar with Splice Installed
$1,299.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar with Splice Installed
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar with Splice Installed is designed for highly corrosive environments, offering a durable solution for efficient power distribution. With an amperage rating of 1000 A, polycarbonate construction, and a maximum temperature of 250 ºF, this conductor bar ensures reliable performance in demanding conditions. It features a phase & ground cover suitable for indoor and outdoor use, with a weight of 85.0 lb and a length of 30.0 ft. The Hevi-Bar II Conductor Bar is compliant with industry standards, delivering safety and efficiency for crane control applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
30.0 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
85.0 lb
