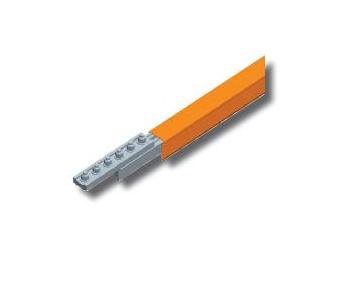

Hevi-Bar II Conductor Bar with Splice Installed - DURA-COAT PVC, 500A, 30ft
Hevi-Bar II Conductor Bar with Splice Installed - DURA-COAT PVC, 500A, 30ft
SKU:CRA-f6a20f
Reliable Hevi-Bar II Conductor Bar with Splice for corrosive environments, ideal for crane control. PVC, 500A, 30ft.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Hevi-Bar II Conductor Bar with Splice Installed - DURA-COAT PVC, 500A, 30ft
$799.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Conductor Bar with Splice Installed - DURA-COAT PVC, 500A, 30ft
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Conductor Bar with Splice Installed is designed for highly corrosive environments, offering a reliable solution for crane control and electrification. With an amperage rating of 500A, PVC material, and a maximum temperature of 160°F, this conductor bar ensures effective power distribution. It features a black UV stable cover for outdoor use, phase & ground protection, and weighs 25.0 lb. Additionally, it meets industry standards for system voltage, resistance, impedance, and support spacing, providing a durable and secure power supply solution.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
25.0 lb
