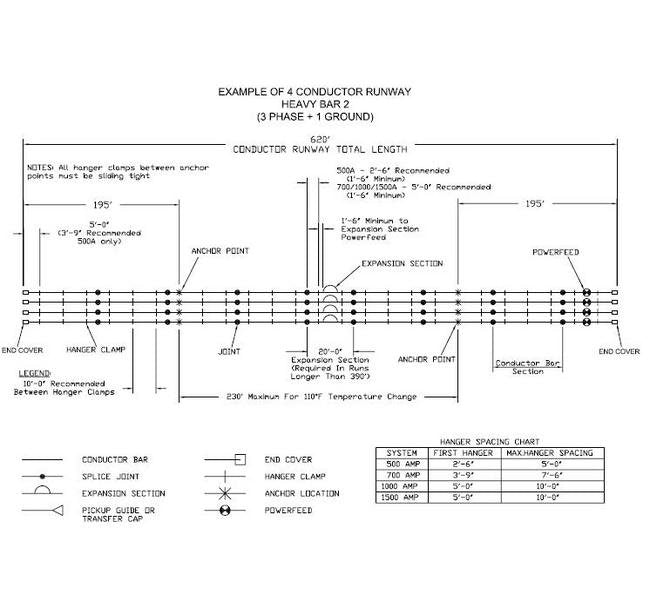

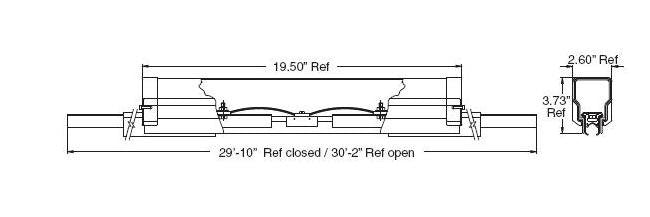

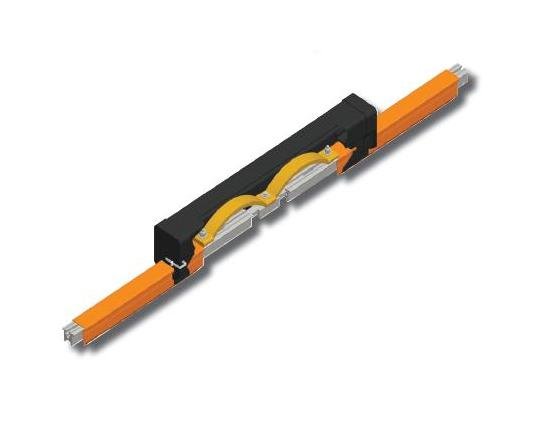

The Hevi-Bar II DURA-COAT Expansion Section is a vital component for structural expansion joints in crane control systems. Designed for systems exceeding 390 ft, this expansion section is built to withstand highly corrosive environments. Constructed from polycarbonate material, it offers a high amperage rating of 500A, ensuring efficient power distribution. With a maximum temperature tolerance of 250°F, it is suitable for both indoor and outdoor use. The included phase and ground cover enhances safety. This 30-ft long, 30 lb expansion section comes with versatile accessories like thermostatically controlled heater wire systems, transfer caps, pick-up guides, and options for vertical and horizontal curves, providing a comprehensive solution for your electrification needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Amperage Rating
500 A
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Length
30.0 ft
Specifications Material
Polycarbonate
Specifications Maximum Temperature
250 ºF
Specifications Weight
30.0 lb
