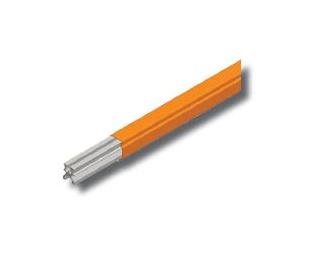

Hevi-Bar II Fiberglass Conductor Bars
Hevi-Bar II Fiberglass Conductor Bars
SKU:CRA-7f139a
Powerfully reliable Hevi-Bar II Fiberglass Conductor Bars for efficient crane control. Amperage Rating: 1000A, Max Temp: 400°F, Phase & Ground Cover.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Hevi-Bar II Fiberglass Conductor Bars
$189.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Fiberglass Conductor Bars
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior power distribution with our Hevi-Bar II Fiberglass Conductor Bars. These cut lengths offer an impressive amperage rating of 1000A, crafted from durable fiberglass reinforced polyester for reliability in temperatures up to 400°F. With a phase & ground orange cover suitable for indoor use, these bars provide excellent resistance and meet stringent industry standards. Ideal for crane control applications, the support spacing of 10ft ensures robust performance in demanding environments. Explore our range of accessories for seamless integration.
Product Specifications
Cover Specifications Dielectric Strength
200 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 345 ºF
Cover Specifications Specific Density
1.24 g/cm³
Cover Specifications Volume Resistivity
>1011 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground / Indoors (Orange)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
5 to 29 ft
Specifications Material
Fiberglass Reinforced Polyester
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
400 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
2.8 lb/ft
