Hevi-Bar II Flange Bracket

Name: Hevi-Bar II Flange Bracket
Brand: Clutch Engineering
SKU: CRA-d4aec3
Price: 49.99 USD
Availability: OutOfStock

SKU:CRA-d4aec3

Securely mount conductor bar systems with the Hevi-Bar II Flange Bracket for reliable support and efficient electrification.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

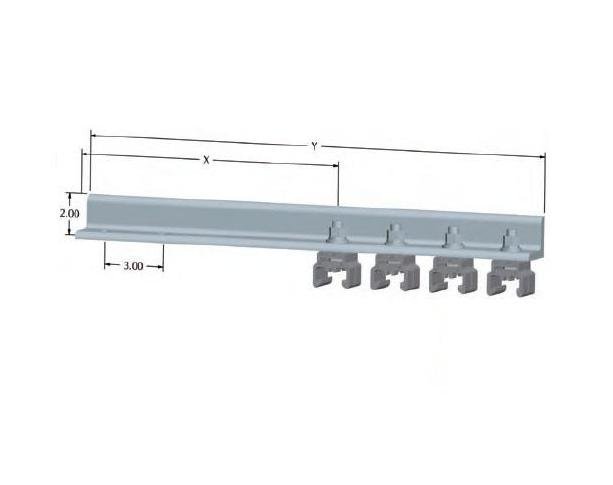

The Hevi-Bar II Flange Bracket is designed for secure mounting to the top flange of beams, offering reliable support for conductor bar systems. Constructed from plated steel, this bracket features a sturdy 2"x 2" angle, 3/8" thick, with a 500 A amperage rating. It comes equipped with four pre-installed hangers with stainless steel cross-bolts for enhanced stability. With dimensions X: 13 1/4 in and Y: 23 1/2 in, this bracket provides a robust solution for industrial applications, ensuring efficient and safe electrification.

Product Specifications

Specifications Amperage Rating

500 A

Specifications Material

Plated Steel

Specifications Type

Bracket with four pre-installed hangers - stainless steel cross-bolt

Specifications Weight

8.8 lb

Specifications X

13 1/4 in

Specifications Y

23 1/2 in

Hevi-Bar II Flange Bracket
