Hevi-Bar II Flange Bracket with Pre-installed Hangers

Name: Hevi-Bar II Flange Bracket with Pre-installed Hangers
Brand: Clutch Engineering
SKU: CRA-3ce849
Price: 79.99 USD
Availability: OutOfStock

SKU:CRA-3ce849

Get reliable and sturdy mounting with the Hevi-Bar II Flange Bracket - plated steel construction, pre-installed hangers, and high amperage ratings for secure installations.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

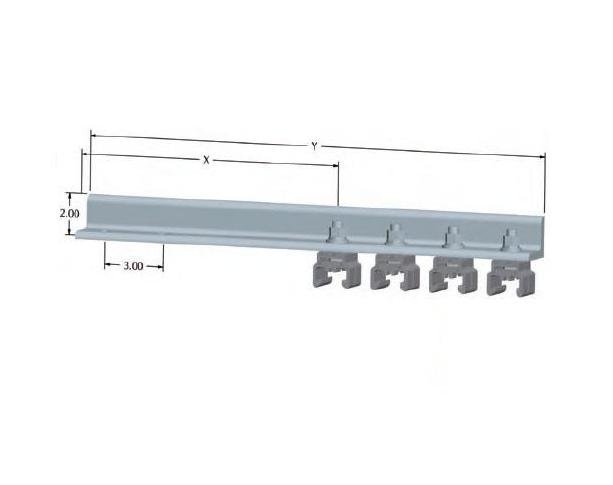

The Hevi-Bar II Flange Bracket is an essential component for mounting to the top flange of beams in conductor bar systems. Crafted from plated steel, this 2"x2" angle bracket, 3/8" thick, features four pre-installed hangers with stainless steel cross-bolts and insulators. With an amperage rating of 700A, 1000A, or 1500A, this bracket offers robust support and durability. Its dimensions of 13 1/4" (X) by 23 1/2" (Y) ensure secure and stable installation, meeting the stringent requirements of crane control applications.

Product Specifications

Specifications Amperage Rating

700 A | 1000 A | 1500 A

Specifications Material

Plated Steel

Specifications Type

Bracket with four pre-installed hangers - stainless steel cross-bolt with insulators

Specifications Weight

8.9 lb

Specifications X

13 1/4 in

Specifications Y

23 1/2 in

Hevi-Bar II Flange Bracket with Pre-installed Hangers
