Hevi-Bar II Lateral Bracket

Name: Hevi-Bar II Lateral Bracket
Brand: Clutch Engineering
SKU: CRA-42a7d9
Price: 49.99 USD
Availability: OutOfStock

SKU:CRA-42a7d9

Efficiently mount conductor bars with the Hevi-Bar II Lateral Bracket. Made of plated steel, it offers reliable support with pre-installed hangers for secure installation.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

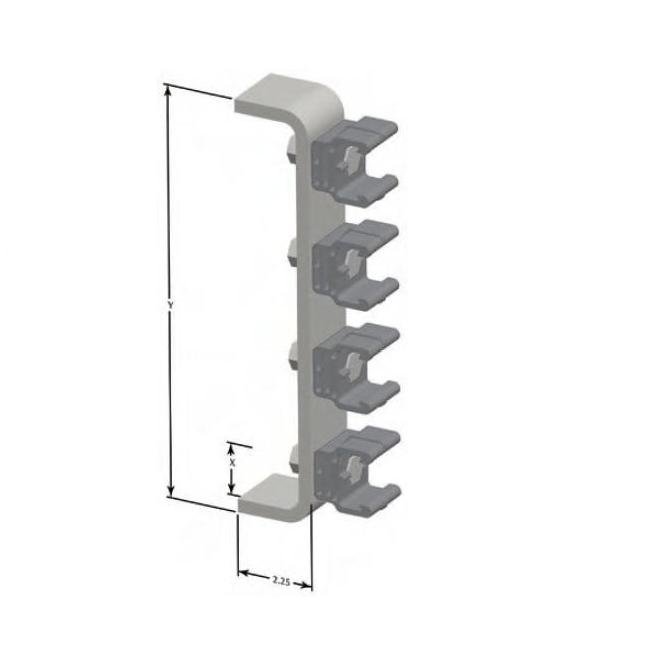

The Hevi-Bar II Lateral Bracket is designed for mounting on the vertical web of a beam to configure conductor bars efficiently one above the other. Constructed from plated steel, this bracket comes equipped with four pre-installed hangers made of standard Polycarbonate material. With a width of 2 1/2" and thickness of 3/8", this bracket provides sturdy support for conductor bars. Available in various amperage ratings of 700 A, 1000 A, and 1500 A, it ensures reliable electrical connectivity. Weighing 3.2 lb, with dimensions X 1 1/2 in and Y 12 in, this bracket is a durable and essential component for your Crane Control & Electrification needs.

Product Specifications

Specifications Amperage Rating

700 A | 1000 A | 1500 A

Specifications Material

Plated Steel

Specifications Type

Bracket with four pre-installed hangers - standard Polycarbonate

Specifications Weight

3.2 lb

Specifications X

1 1/2 in

Specifications Y

12 in

Hevi-Bar II Lateral Bracket
