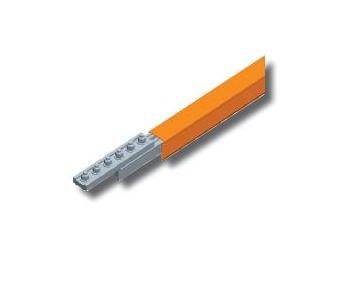

Hevi-Bar II PVC Conductor Bar with Splice Installed
Hevi-Bar II PVC Conductor Bar with Splice Installed
SKU:CRA-336af4
Highly durable and corrosion-resistant Hevi-Bar II PVC Conductor Bar with installed splice for reliable power distribution in demanding environments.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Hevi-Bar II PVC Conductor Bar with Splice Installed
$599.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II PVC Conductor Bar with Splice Installed
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II PVC Conductor Bar with Splice Installed is engineered for exceptional performance in highly corrosive environments. With an impressive amperage rating of 500 A and a maximum system voltage of 600 V AC/DC, this conductor bar is designed to deliver reliable power distribution. Its PVC material and phase/indoors orange cover provide durability and protection, ensuring longevity even in demanding conditions. Additionally, the included splice enhances ease of installation, making it a convenient solution for crane control and electrification applications.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
25.0 lb
