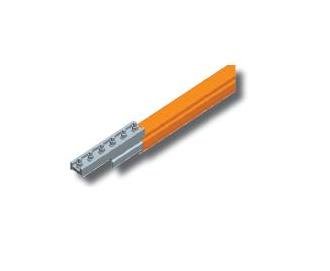

Hevi-Bar II PVC Conductor Bar with Splice Installed
Hevi-Bar II PVC Conductor Bar with Splice Installed
SKU:CRA-f16e6a
Advanced Hevi-Bar II PVC Conductor Bar for demanding environments. Superior amperage rating, flame-retardant, and high heat tolerance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Hevi-Bar II PVC Conductor Bar with Splice Installed
$149.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II PVC Conductor Bar with Splice Installed
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II PVC Conductor Bar Cut Lengths with Splice Installed are designed for highly corrosive environments, with superior specifications including an amperage rating of 700A, PVC material construction, maximum temperature tolerance of 160°F, and weight of 1.31 lb/ft. These conductor bars offer a cross-sectional area of 0.70 in², maximum system voltage of 4160V AC or 600V DC, and resistance optimized for efficient performance. With support spacing of 7.5 ft, spacing between conductors at 3.0 in, and flame-retardant properties, these bars ensure reliable power distribution with durability and safety in mind.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
1.31 lb/ft
