Hevi-Bar II PVC Expansion Section
Hevi-Bar II PVC Expansion Section
SKU:CRA-bd5795
Durable PVC expansion section for structural joints & large systems in corrosive environments, Amperage Rating: 700A, Max Temp: 160 °F
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Hevi-Bar II PVC Expansion Section
$249.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II PVC Expansion Section
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

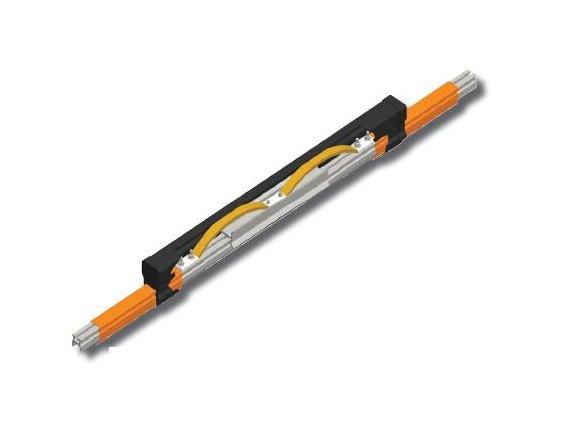

The Hevi-Bar II PVC Expansion Section is a crucial component for structural expansion joints and systems exceeding 390 ft. in highly corrosive environments. With a rugged PVC construction, this expansion section is designed with a high Amperage Rating of 700 A, ensuring reliable power distribution. Its durable material and cover type make it ideal for indoor applications, providing a maximum temperature of 160 °F. Additionally, it features a convenient length of 15.0 ft and a weight of 50.0 lb, delivering both performance and durability.
Product Specifications
Specifications Amperage Rating
700 A
Specifications Cover Type
Phase / Indoors (Orange)
Specifications Length
15.0 ft
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Weight
50.0 lb
