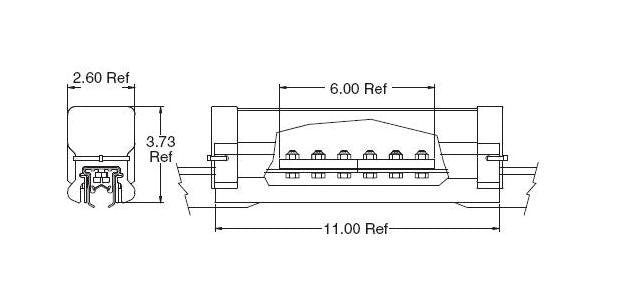

Hevi-Bar II Splice Joints - Standard PVC 500A
Hevi-Bar II Splice Joints - Standard PVC 500A
SKU:CRA-b42c75
Durable PVC splice joints for Hevi-Bar II Conductor Bars - 500A, 160°F max temp, versatile covers. Compliant with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hevi-Bar II Splice Joints - Standard PVC 500A
$29.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Splice Joints - Standard PVC 500A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conductor bar system with Hevi-Bar II Splice Joints. These PVC splice joints are designed for durability and safety, with an amperage rating of 500A and a maximum temperature of 160°F. The ground/indoors, phase & ground/outdoors UV stable, and phase/indoors cover types ensure versatile use. Weighing only 1.5 lb, these joints come with 1/4 inch bolts and require a torque of 6-8 ft·lb. Compliant with industry standards, Hevi-Bar II Splice Joints are the reliable choice for your crane control and electrification needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Amperage Rating
500 A
Specifications Bolts
1/4 in
Specifications Cover Type
Ground / Indoors (Green) | Phase & Ground / Outdoors UV Stable (Black) | Phase / Indoors (Orange)
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Torque
6 - 8 ft·lb
Specifications Weight
1.5 lb
