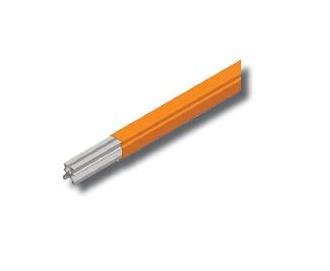

Hevi-Bar II Standard Conductor Bar
Hevi-Bar II Standard Conductor Bar
SKU:CRA-232447
High-quality Hevi-Bar II Conductor Bar for reliable industrial performance. Phase & Ground protected with an amperage rating of 1000A.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Hevi-Bar II Standard Conductor Bar
$599.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Standard Conductor Bar
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Standard Conductor Bar is a high-quality PVC conductor bar designed for crane control & electrification systems. With an impressive amperage rating of 1000A, this conductor bar offers reliable performance in industrial settings. The cover is Phase & Ground protected, UV stable, ensuring durability and safety outdoors. Featuring a maximum system voltage of 4160V AC or 600V DC, this conductor bar meets the most stringent electrical standards. Additional accessories like Pick-up Guides and Transfer Caps enhance flexibility in system design, making it an excellent choice for heavy-duty operations.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1000 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
1.05 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
12 ft
Specifications Phase Corrected Impedance Z At 20 C
3.39 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
1.41 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
85.0 lb
