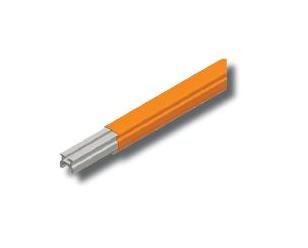

Hevi-Bar II Standard Conductor Bar
Hevi-Bar II Standard Conductor Bar
SKU:CRA-1d18d8
High-performing Hevi-Bar II Standard Conductor Bar for robust crane control. 700A capacity, durable material, and versatile for indoor/outdoor use.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Hevi-Bar II Standard Conductor Bar
$349.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Standard Conductor Bar
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Standard Conductor Bar is engineered for heavy-duty crane control applications, boasting an impressive 700A amperage rating and durable polycarbonate construction. With a maximum temperature of 250°F and corrosion protection options, this conductor bar is designed for both indoor and outdoor use. It offers Phase & Ground cover type, suitable for a maximum system voltage of 4160V AC or 600V DC. Featuring a range of accessories and compliant with industry standards, the Hevi-Bar II sets the standard for reliable electrification systems.
Product Specifications
Cover Specifications Dielectric Strength
600 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 200 ºF
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Volume Resistivity
>1013 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground/ Indoors & Outdoors (Red)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
Polycarbonate
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
250 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
