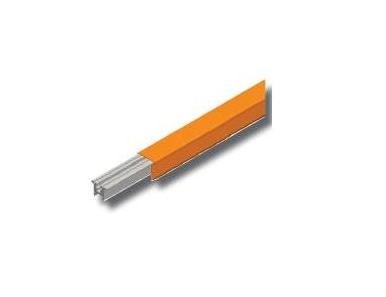

Hevi-Bar II Standard Conductor Bar
Hevi-Bar II Standard Conductor Bar
SKU:CRA-728194
Durable Hevi-Bar II Conductor Bar for reliable power distribution in industrial environments.
Regular price
$379.99
Regular price
Sale price
$379.99
Unit price
per
Initiate Order
Hevi-Bar II Standard Conductor Bar
$379.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Standard Conductor Bar
$379.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hevi-Bar II Standard Conductor Bar is a robust PVC conductor bar built to handle heavy-duty applications with an amperage rating of 500 A. Designed for Crane Control & Electrification, it features a phase & ground black cover that is outdoors UV stable, ensuring durability in harsh environments. With a length of 30.0 ft and maximum system voltage of 600 V, this conductor bar meets industry standards for safe and efficient power distribution. The included accessories like pick-up guides, thermostatically controlled heater wire system, and transfer caps enhance versatility for various setups.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
25.0 lb
