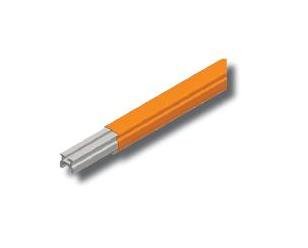

Hevi-Bar II Standard Conductor Bar
Hevi-Bar II Standard Conductor Bar
SKU:CRA-657577
Power up your crane control with Hevi-Bar II Standard Conductor Bar. Durable PVC, high amperage, corrosion resistant, and certified quality.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Hevi-Bar II Standard Conductor Bar
$299.99
Quantity: 1
Claim Your Seller Account
Hevi-Bar II Standard Conductor Bar
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your crane control system with the Hevi-Bar II Standard Conductor Bar, featuring a robust PVC construction for durability and a high amperage rating of 700 A. With a maximum system voltage of 4160 V AC or 600 V DC, and corrosion protection options like Stainless Steel or Zinc Plated, this conductor bar ensures reliable power distribution in industrial environments. The Hevi-Bar II Conductor Bar with Phase & Ground cover type, self-extinguishing properties, and compliance with industry-specific certifications is a top choice for efficient electrification needs.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
700 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Corrosion Protection Option
Stainless Steel | Zinc Plated
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)
Specifications Cross Sectional Area
0.70 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
10 ft
Specifications Phase Corrected Impedance Z At 20 C
4.21 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
2.11 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
7.5 ft
Specifications Weight
40.0 lb
