Hex Coupling 3/4 Inch Pipe Size - IHC Series
Hex Coupling 3/4 Inch Pipe Size - IHC Series
SKU:IHC-f77517
Durable 316 Stainless Steel Hex Coupling for 3/4in Pipe Size, Female NPT Threads, Industry-Standard Dimensions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Hex Coupling 3/4 Inch Pipe Size - IHC Series
$29.99
Quantity: 1
Claim Your Seller Account
Hex Coupling 3/4 Inch Pipe Size - IHC Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

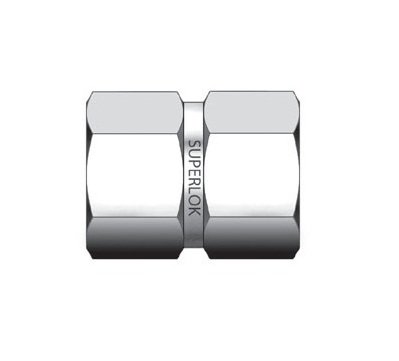

The IHC Series 3/4 Inch Hex Coupling offers durability and precision with its 316 stainless steel construction. Featuring Female NPT Threads for secure connections, this coupling ensures reliable performance. With dimensions meeting industry standards, this coupling is ideal for various applications and is available in different materials upon request.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
41.1 mm
Technical Specs Dimension E
23.9 mm
Technical Specs Dimension H
33.3 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
3/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
