Hex Reducing Coupling 3/4" to 1/4" - IHRC Series
Hex Reducing Coupling 3/4" to 1/4" - IHRC Series
SKU:IHR-cfcc03
High-quality Hex Reducing Coupling for secure pipe size reduction, female NPT threads.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Hex Reducing Coupling 3/4" to 1/4" - IHRC Series
$14.99
Quantity: 1
Claim Your Seller Account
Hex Reducing Coupling 3/4" to 1/4" - IHRC Series
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

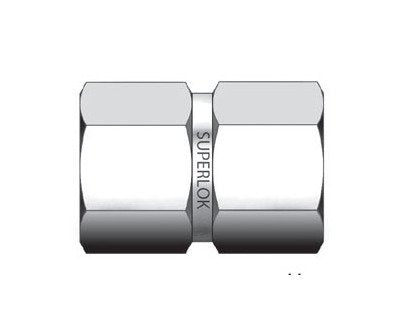

The IHRC Series Hex Reducing Coupling features a durable construction with 316 Stainless Steel, Brass, or Carbon Steel options, designed to reduce from a 3/4-inch to a 1/4-inch pipe size. With female NPT threads, this coupling ensures a secure connection. Its compact design, precise dimensions, and adherence to National Pipe Thread (NPT) standards make it ideal for a wide range of applications. Experience superior quality, reliability, and compliance with industry standards.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

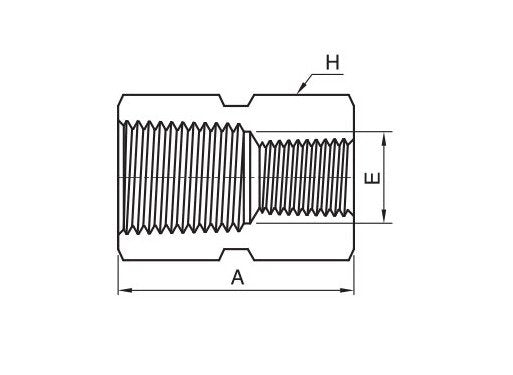

Technical Specs Dimension A
46.0 mm
Technical Specs Dimension E
11.4 mm
Technical Specs Dimension H
33.3 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
3/4 in
Technical Specs Reduced Pipe Size
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
