Hexagonal Gear Ratchet Wrench - Model 103
Hexagonal Gear Ratchet Wrench - Model 103
SKU:SER-cd7fe7
Versatile 1 1/4in Hexagonal Gear Ratchet Wrench from Series 100, with slim profile gears and vinyl grip for precision and comfort.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hexagonal Gear Ratchet Wrench - Model 103
$39.99
Quantity: 1
Claim Your Seller Account
Hexagonal Gear Ratchet Wrench - Model 103
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

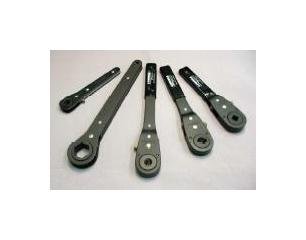

The Model 103 Ratchet Wrench from the Series 100 lineup is a versatile tool suited for a wide range of applications. With a 1 1/4 inch hexagonal gear opening and slim profile gears, this wrench offers precise control and durability. The vinyl grip ensures comfort during extended use, while the bolt-through design enhances stability. Suitable for handle lengths ranging from 7 to 12 inches, the Model 103 also features reversing controls in the head for added convenience. This wrench is factory pre-assembled and boasts a gear opening size of 1.840 inches by 2.329 inches, meeting the demands of both consumer and institutional buyers.
Product Specifications

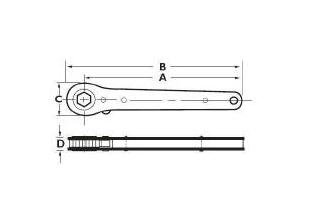

Specifications Gear Dimension A
1.840 in | 46.7 mm
Specifications Gear Dimension B
2.329 in | 59.2 mm
Specifications Gear Dimension C
.504 in | 12.8 mm
Specifications Gear Dimension D
.885 in | 22.5 mm
Specifications Gear Opening Shape
Hexagonal
Specifications Gear Opening Size
1 1/4 in
Specifications Gear Part Number
L3320
Specifications Handle Part Number
829L1
Specifications Model
103
Specifications Number Of Teeth
20
Specifications Overall Length B
13 1/2 in | 342 mm
Specifications Series
100
Specifications Socket Head Diameter C
2 1/2 in | 64 mm
Specifications Socket Length A
12 in | 305 mm
Specifications Thickness D
7/8 in | 22 mm
Specifications Weight
2 1/4 lb | 1.02 kg
