Hexagonal Gear Ratcheting Crank Wrench - Model 101 (9/16 in)

Name: Hexagonal Gear Ratcheting Crank Wrench - Model 101 (9/16 in)
Brand: Lowell Corporation
SKU: RAT-6a6b0f
Price: 39.99 USD
Availability: OutOfStock

SKU:RAT-6a6b0f

Versatile Hexagonal Gear Ratcheting Crank Wrench - Model 101 for precise machinery adjustments with durability and efficiency.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

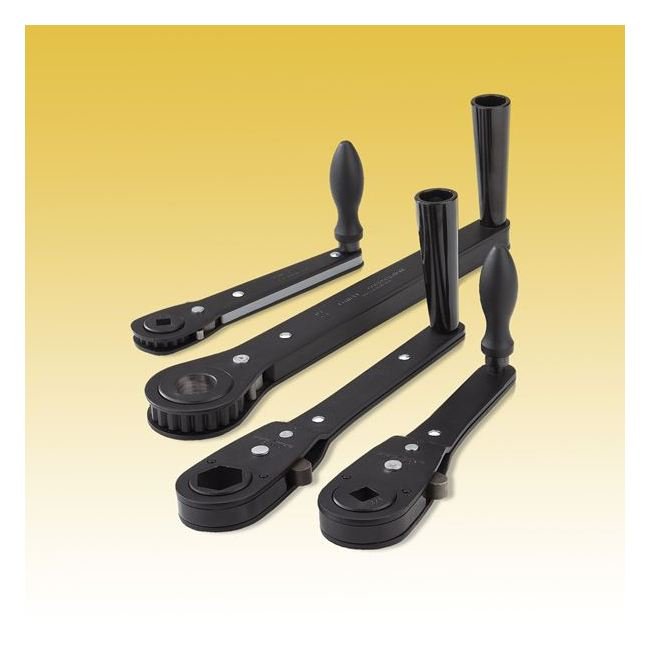

The Hexagonal Gear Ratcheting Crank Wrench - Model 101 is a versatile tool designed for machinery adjustments with precision and efficiency. Its bolt-through design ensures secure nut fastening on any threaded length. Featuring a durable metal handle and a rotating plastic handle option, this wrench allows for various adjustments including cross feed, rise and fall, gib and quill adjustments. With a reversible control function and a range of opening shapes available, this 100% USA-made wrench is a reliable choice for industrial applications.

Product Specifications

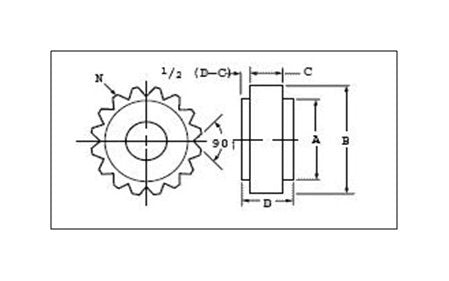

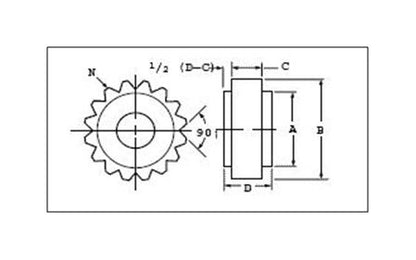

Specifications Gear Dimension A

1.058 in | 26.9 mm

Specifications Gear Dimension B

1.365 in | 34.7 mm

Specifications Gear Dimension C

.245 in | 6.2 mm

Specifications Gear Dimension D

.623 in | 15.8 mm

Specifications Gear Opening Shape

Hexagonal

Specifications Gear Opening Size

9/16 in

Specifications Gear Part Number

82959

Specifications Handle Nominal Length A

7 in | 152 mm

Specifications Handle Part Number

82901

Specifications Model

101

Specifications Number Of Teeth

Specifications Weight

3/4 lb | 0.34 kg

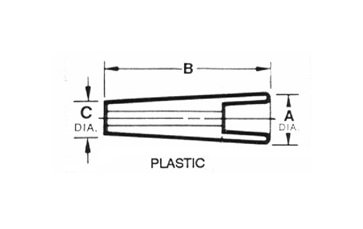

Specifications Wrench Handle Dimension A

1 1/8 in | 28.6 mm

Specifications Wrench Handle Dimension B

3 11/16 in | 68.3 mm

Specifications Wrench Handle Dimension C

3/4 in | 19.0 mm

Specifications Wrench Handle Length

Long

Specifications Wrench Handle Material

Plastic

Specifications Wrench Handle Type

Fixed | Revolving
