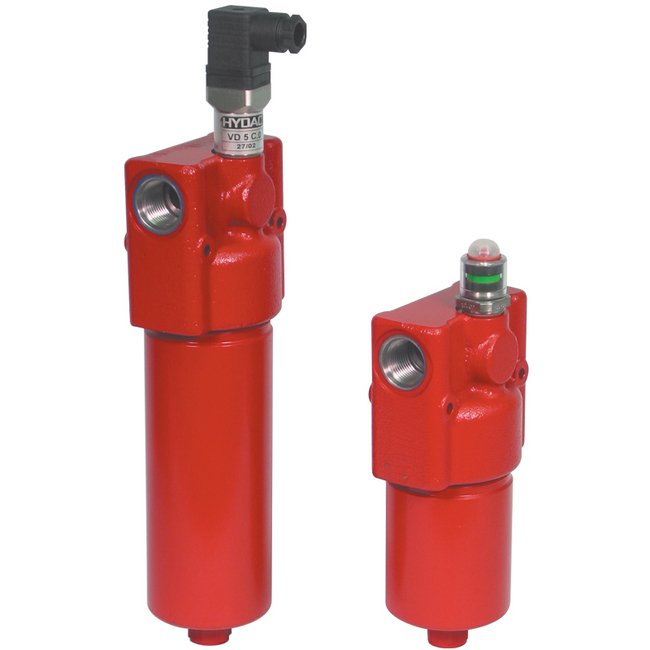

HF2P Series 4000 PSI Inline Industrial Filter
HF2P Series 4000 PSI Inline Industrial Filter
SKU:HYD-1b3bd9
High-pressure inline filter for automotive hydraulic systems. Maximum 4000 psi, 3µm filtration, durable design, versatile porting options.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
HF2P Series 4000 PSI Inline Industrial Filter
$499.99
Quantity: 1
Claim Your Seller Account
HF2P Series 4000 PSI Inline Industrial Filter
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HF2P Series 4000 PSI Inline Industrial Filter is designed for high-pressure hydraulic systems, meeting the stringent filtration needs of automotive applications. With a maximum operating pressure of 4000 psi and a filtration rating of 3µm, this filter ensures optimal performance and component protection. The non-welded housing design reduces stress concentrations, enhancing durability. Featuring various porting options for easy installation and seal material compatibility with a range of fluids, including petroleum oils and water-glycols, this filter offers versatility and reliability. The poppet-type bypass valve provides superior sealing and fast response during cold starts, ensuring smooth operation under varying conditions.
Product Specifications
Dimensions Height
8.43 in | 214 mm
Dimensions Width
4.02 in | 102 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of BSPP, SAE straight thread O-ring boss, and manifold-mount porting (sizes 4" & 8") to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile Rubber, fluorocarbon elastomer, and ethylene propylene Rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bypass Valve
B6
Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Specifications Element Material
Betamicron®
Specifications End Type
SAE Straight Thread O-ring Boss Ports
Specifications Filter Rating
3 µm
Specifications Flow
16 gpm | 60 L/min
Specifications Head Material
Ductile iron
Specifications Model Code Description
HF2P-BH-04OI3BM1.2/12V-B6
Specifications Mounting Type
Inline Filter 2 Mounting Holes
Specifications Operating Pressure Max
276 bar | 4000 psi
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seal Material
Fluorocarbon Elastomer (FKM)
Specifications Type
High Pressure Filter
Specifications Weight
4.85 kg | 10.7 lb
