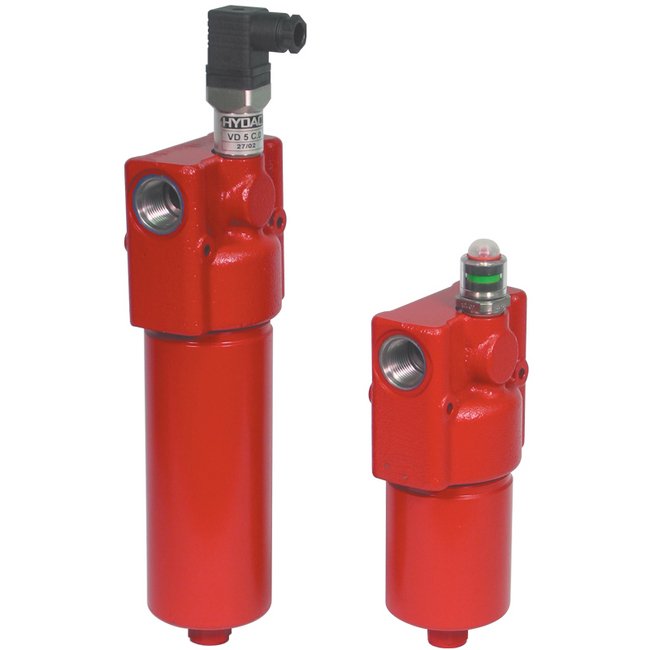

HF2P Series 4000 PSI Inline Industrial Filter
HF2P Series 4000 PSI Inline Industrial Filter
SKU:HYD-186c1f
High-pressure Inline Industrial Filter for automotive and industrial hydraulic applications. 4000 psi, 16 gpm flow rate, 10 µm filter rating.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
HF2P Series 4000 PSI Inline Industrial Filter
$299.99
Quantity: 1
Claim Your Seller Account
HF2P Series 4000 PSI Inline Industrial Filter
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HF2P Series 4000 PSI Inline Industrial Filter is designed for high-pressure hydraulic applications in automotive and industrial settings. With a maximum operating pressure of 4000 psi, a flow rate of 16 gpm, and a filter rating of 10 µm, this filter ensures efficient and reliable filtration. The non-welded housing design reduces stress concentrations, while the choice of seal materials provides compatibility with various fluids. Additionally, features like the screw-in bowl for easy element replacement and the poppet-type bypass valve enhance performance and ease of maintenance.
Product Specifications
Dimensions Height
8.43 in | 214 mm
Dimensions Width
4.02 in | 102 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of BSPP, SAE straight thread O-ring boss, and manifold-mount porting (sizes 4" & 8") to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile Rubber, fluorocarbon elastomer, and ethylene propylene Rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bypass Valve
B6
Specifications Bypass Valve Cracking Pressure
6 bar | 87 psid
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Element Collapse Pressure Rating
210 bar | 3045 psi
Specifications Element Material
Betamicron®
Specifications End Type
SAE Straight Thread O-ring Boss Ports
Specifications Filter Rating
10 µm
Specifications Flow
16 gpm | 60 L/min
Specifications Head Material
Ductile iron
Specifications Model Code Description
HF2P-BH-04OI10C1.2/12B6
Specifications Mounting Type
Inline Filter 2 Mounting Holes
Specifications Operating Pressure Max
276 bar | 4000 psi
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Type
High Pressure Filter
Specifications Weight
4.85 kg | 10.7 lb
