HH57 Series 15 kVDC Ceramic Capacitors - High Capacitance & Reliable Performance
HH57 Series 15 kVDC Ceramic Capacitors - High Capacitance & Reliable Performance
SKU:CER-df9a26
Compact HH57 Series Ceramic Capacitors with high capacitance & 15 kVDC power ratings - ideal for performance & durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HH57 Series 15 kVDC Ceramic Capacitors - High Capacitance & Reliable Performance
$29.99
Quantity: 1
Claim Your Seller Account
HH57 Series 15 kVDC Ceramic Capacitors - High Capacitance & Reliable Performance
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

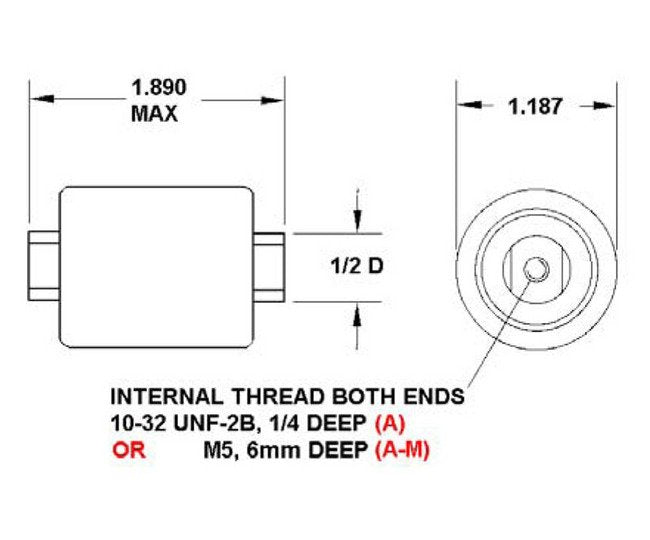

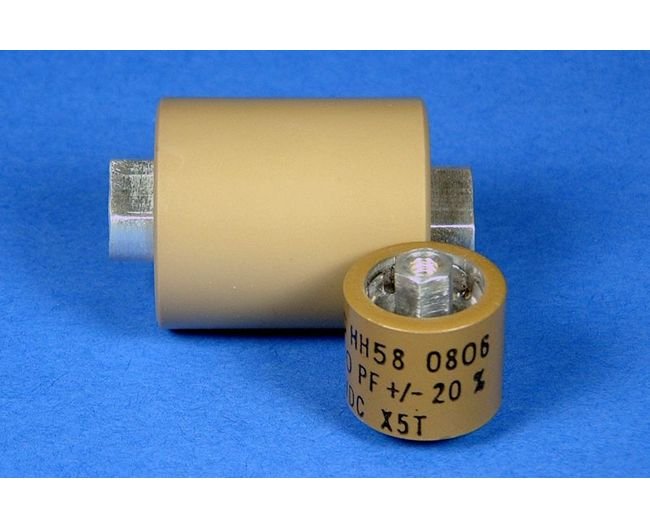

The HH57 Series Ceramic Capacitors offer compact design and high capacitance suitable for a wide range of applications. With 7.5 and 15 kVDC power ratings, these capacitors come in a broadcast barrel package with metric or English terminals, and feature three Class II dielectrics. Designed for efficiency and durability, these capacitors ensure reliable performance in various operating conditions.
Product Specifications
Specifications Cap
750 pF
Specifications Capacitance Tolerance
±10% | ±20%
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

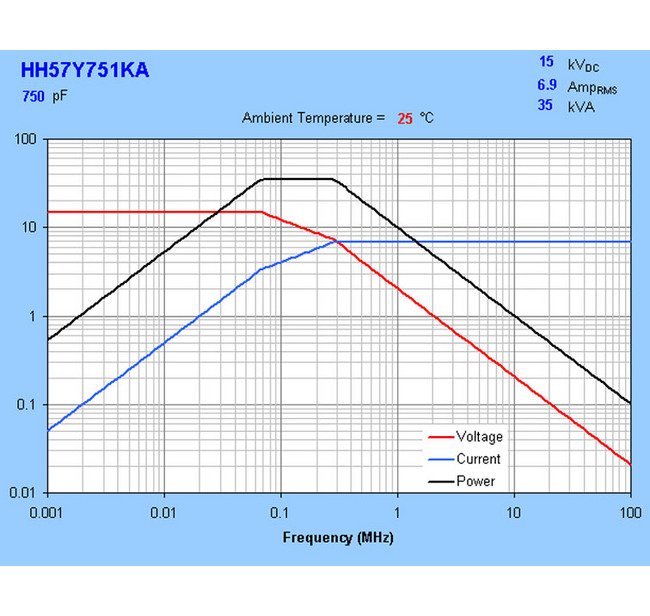

Specifications Fh
0.288 MHz
Specifications Fl
0.0660 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
6.90 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
35 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Thread
10-32
Specifications Vmax Dc
15 kV
