HH57 Series 15kVDC Ceramic Capacitors - High Capacitance Compact Parts
HH57 Series 15kVDC Ceramic Capacitors - High Capacitance Compact Parts
SKU:CER-31b484
High-capacitance HH57 Series 15kVDC Ceramic Capacitors for reliable performance in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HH57 Series 15kVDC Ceramic Capacitors - High Capacitance Compact Parts
$29.99
Quantity: 1
Claim Your Seller Account
HH57 Series 15kVDC Ceramic Capacitors - High Capacitance Compact Parts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

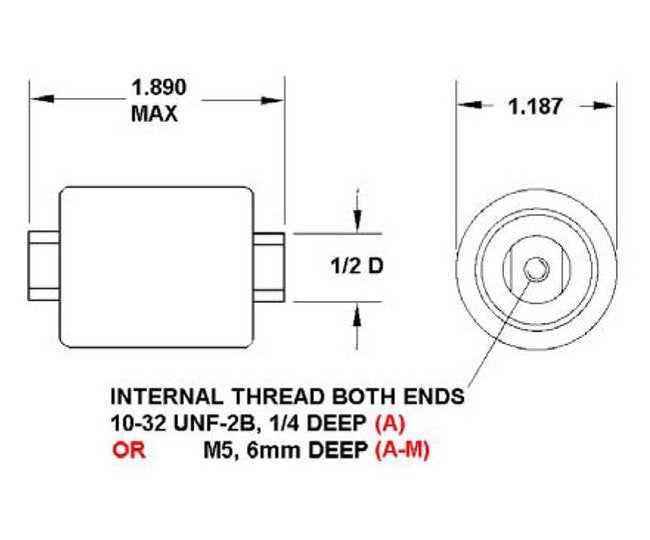

The HH57 Series Ceramic Capacitors are designed for high-performance applications requiring a compact form factor and high capacitance. With a 15 kVDC power rating and three Class II dielectrics to choose from, these capacitors deliver reliable performance in diverse settings. Featuring metric or English terminals and a broadcast barrel package, they ensure ease of installation and compatibility. The capacitors offer excellent capacitance tolerance, dissipation factor, and insulation resistance, making them ideal for a wide range of industrial and institutional applications while meeting stringent quality standards.
Product Specifications
Specifications Cap
1200 pF
Specifications Capacitance Tolerance
±10% | ±20%
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Fh
0.0985 MHz
Specifications Fl
0.0412 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
5.10 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
35 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Thread
10-32
Specifications Vmax Dc
15 kV
