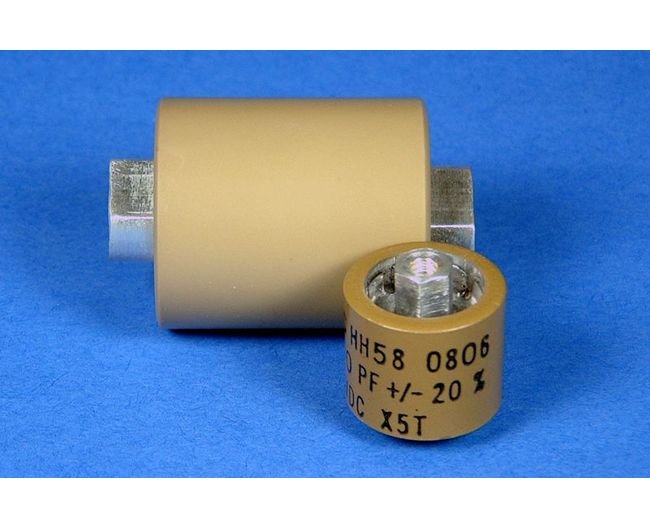

The HH58 Series Ceramic Capacitors offer high capacitance and 7.5 kVDC power ratings, housed in a compact broadcast barrel package with a choice of metric or English terminals. Featuring three Class II dielectrics including X5V, these capacitors ensure reliable performance in a wide temperature range (-55 to +85 ºC). With a capacitance tolerance of ±10% | ±20%, and a maximum dissipation factor of 1.5%, these capacitors provide stable and efficient operation. Designed for durability, these capacitors boast a dielectric strength that can withstand 1.5 times the rated working voltage for 10 seconds at 25ºC, ensuring longevity and reliability in demanding applications.
Product Specifications
Specifications Cap
1000 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Characteristic
+22%, -82% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5V
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

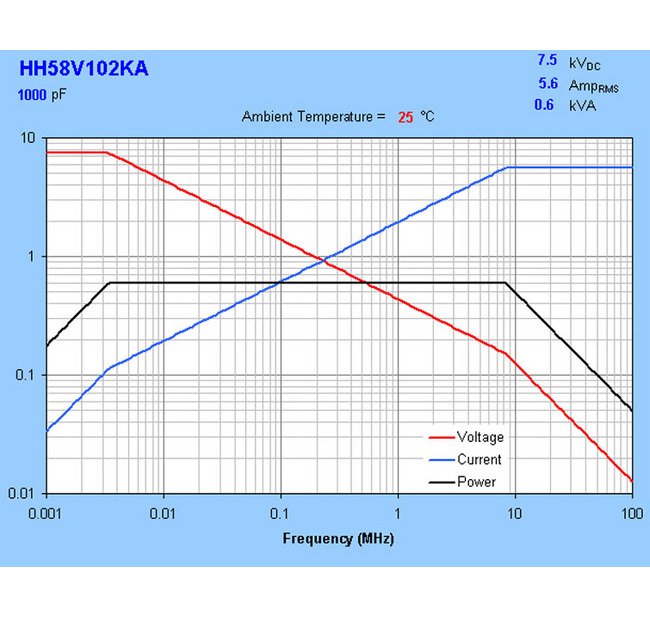

Specifications Fh
8.31 MHz
Specifications Fl
0.00339 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
5.60 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
0.6 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)

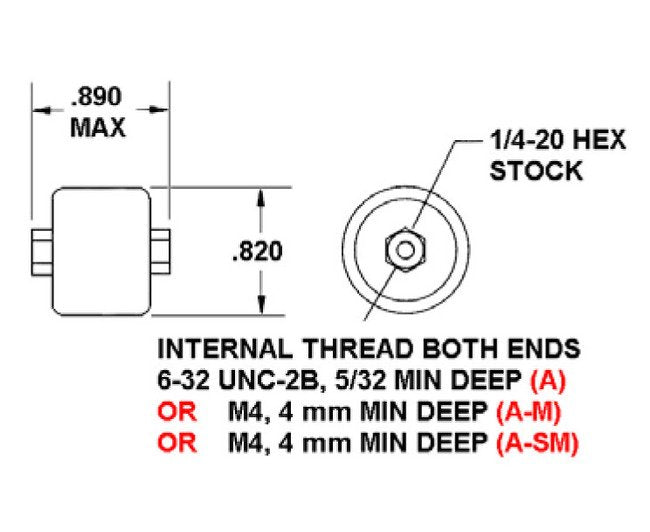

Specifications Thread
6-32
Specifications Vmax Dc
7.5 kV
